Technical Details Fuel Type Electric Construction Freestanding Burner Type Radiant Type of Grate N/A Watts (W) / Max BTU 3,000 W Amperage 50A Volts (V) 240V Frequency (Hz) 60Hz Control Type Knob / Touch Screen Panel light Yes Plug Type 50 Amp 4-Prong Power Cord Length (in.) US – Not Included (Canada Included) Oven Performance Oven Capacity (cu. Ft.) 4.55 cu. ft. Oven Control Features: Light On/Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self Clean, Control Lock Capability, Sabbath Mode, Temperature Probe C° or F° Programmable Oven Cooking Modes Bake, Conv Bake, Roast, Conv Roast, Air Fry, Pizza, Proof, Keep Warm, Fast Preheat, Dehydrate Bake Element Power 3000 W Broil Element Power 3500 W Convection True Convection With 800 W Heating Element Oven Lights Yes Oven Racks (Standard) 1 Oven Racks (Telescopic) 1 Baking Sheet Size Fits 23” x 16” Baking Sheet Self Clean (Y/N) Y Sabbath Mode (Y/N) Y Air Fry Y Cooktop Performance Total Elements 5 Front Left Element 3,000W (1,500W & 1,500W) Front Right Element 3,000W (1,800W & 1,200W) Rear Left Element 1,200W Rear Center Element 100W Rear Right Burner 1,200W

Dimensions Product Dimensions (WxDxH) 29-7/8” x 29-3/4” x 36” Rubber Spacer Depth (Install On Back Panel) 3/4″ Product Height (From Bottom To Top Of Back Splash) 36″ Product Height (From Bottom To Top Of Side Panel) 36″ Product Depth (From Back Panel To Handle) 29″ Product Depth (From Back Panel To Bullnose) 27-1/2” Product Depth (From Back Panel To Control Panel) 26-3/8” Product Depth (From Back Panel To Side Panel Front) 24″ Cutout Dimensions (WxDxH) 30” x 24-3/4” x 36” - 39” Adjustable Height 3” Max Package Dimensions (WxDxH) 32” x 32” x 45-1/16” Weight Net weight 201 lbs. Gross weight 245 lbs. Oven Dimensions Oven Internal Width 23-3/4” Oven Internal Depth 19-1/2” Oven Internal Height 18”

Cutout Cutout Height 36 (min.) – 39 (max.) (in) Cutout Width 30 (in.) Cutout Depth 24 3/4 (in.)

RSE30B

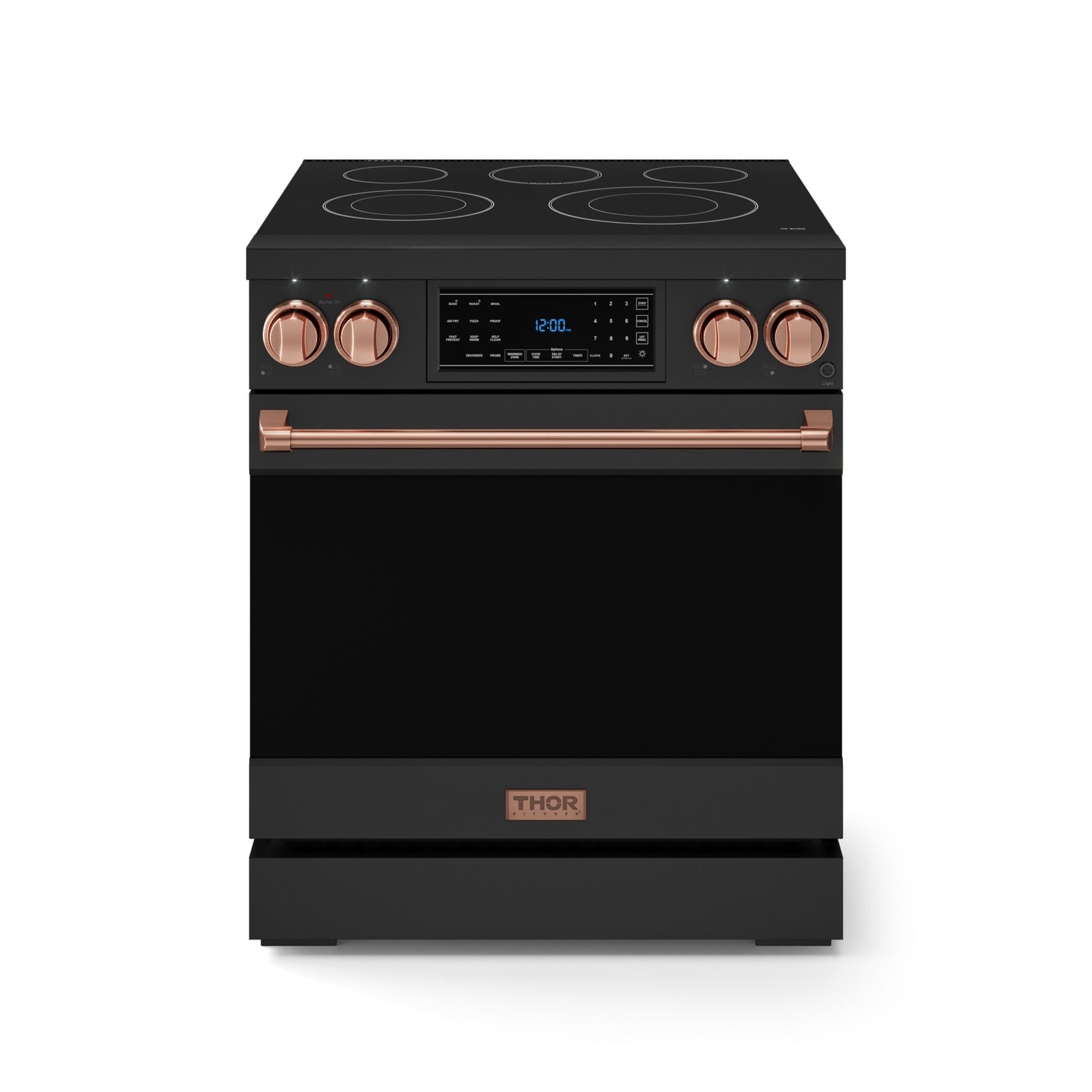

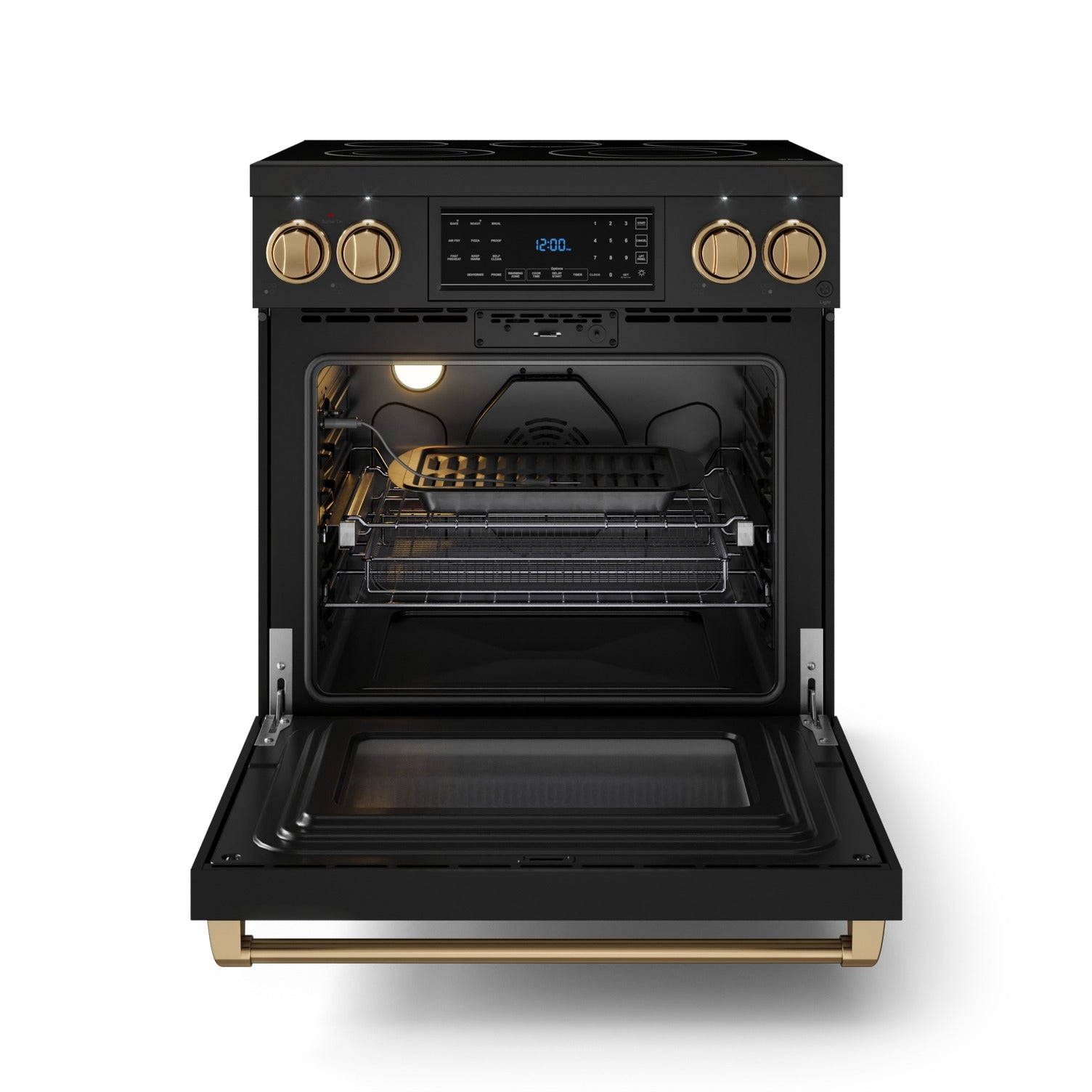

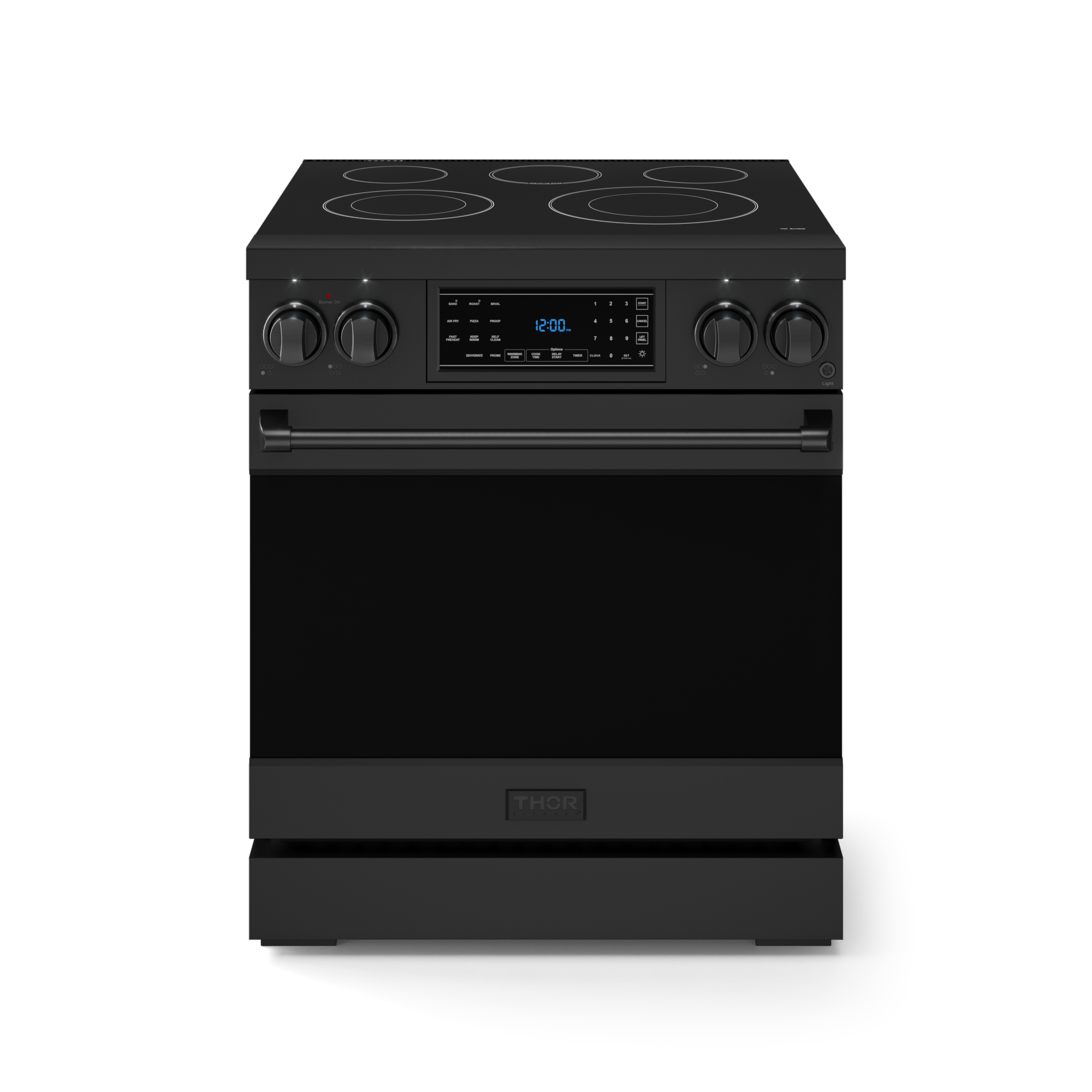

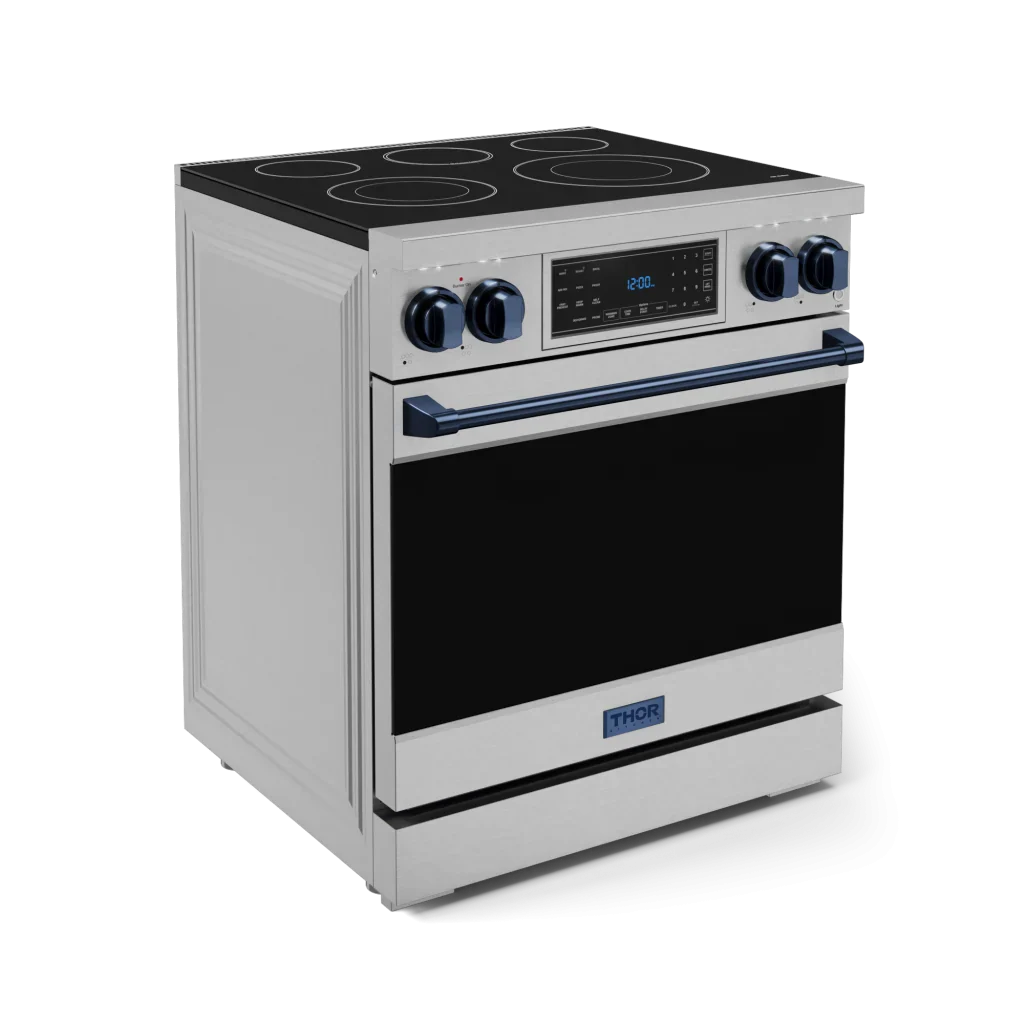

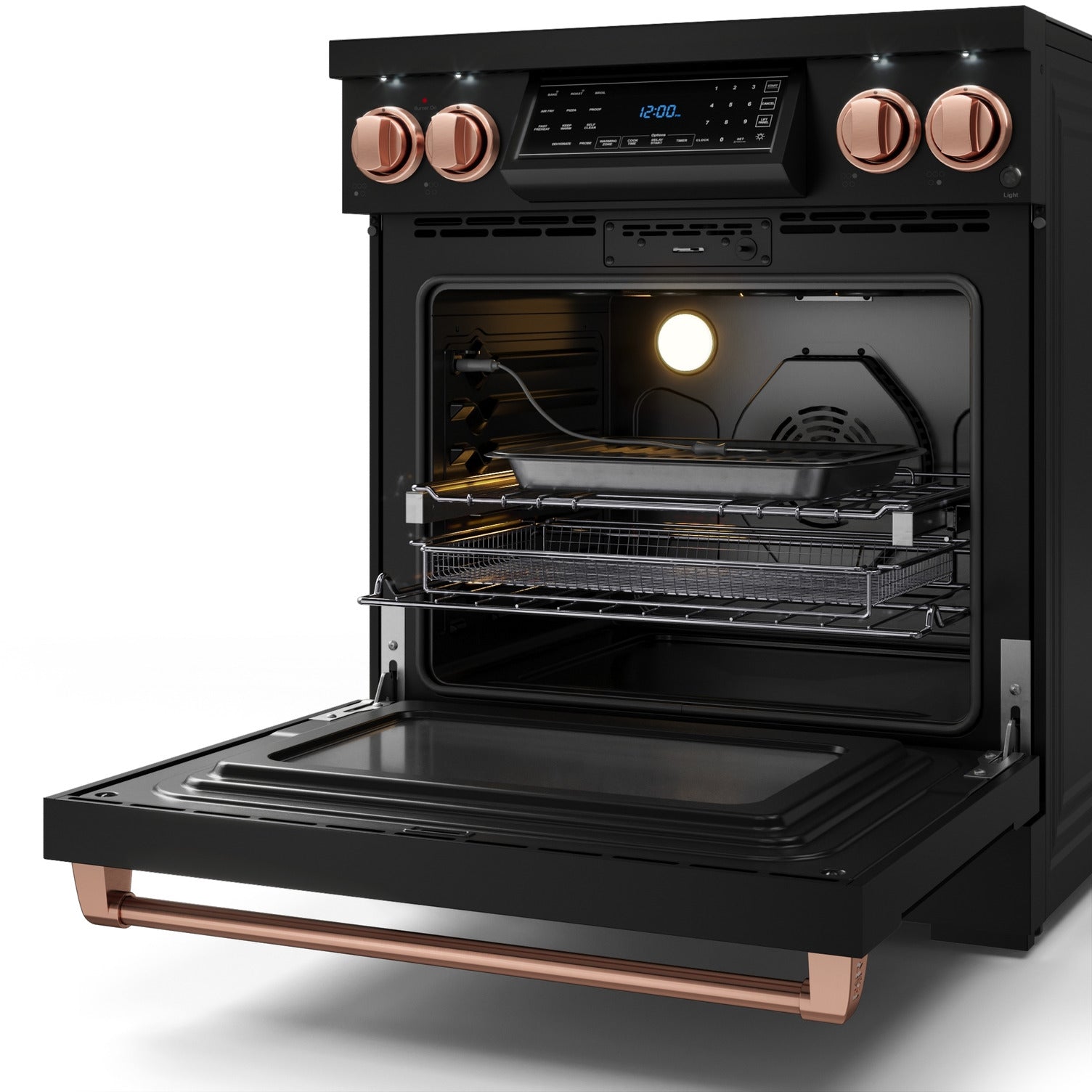

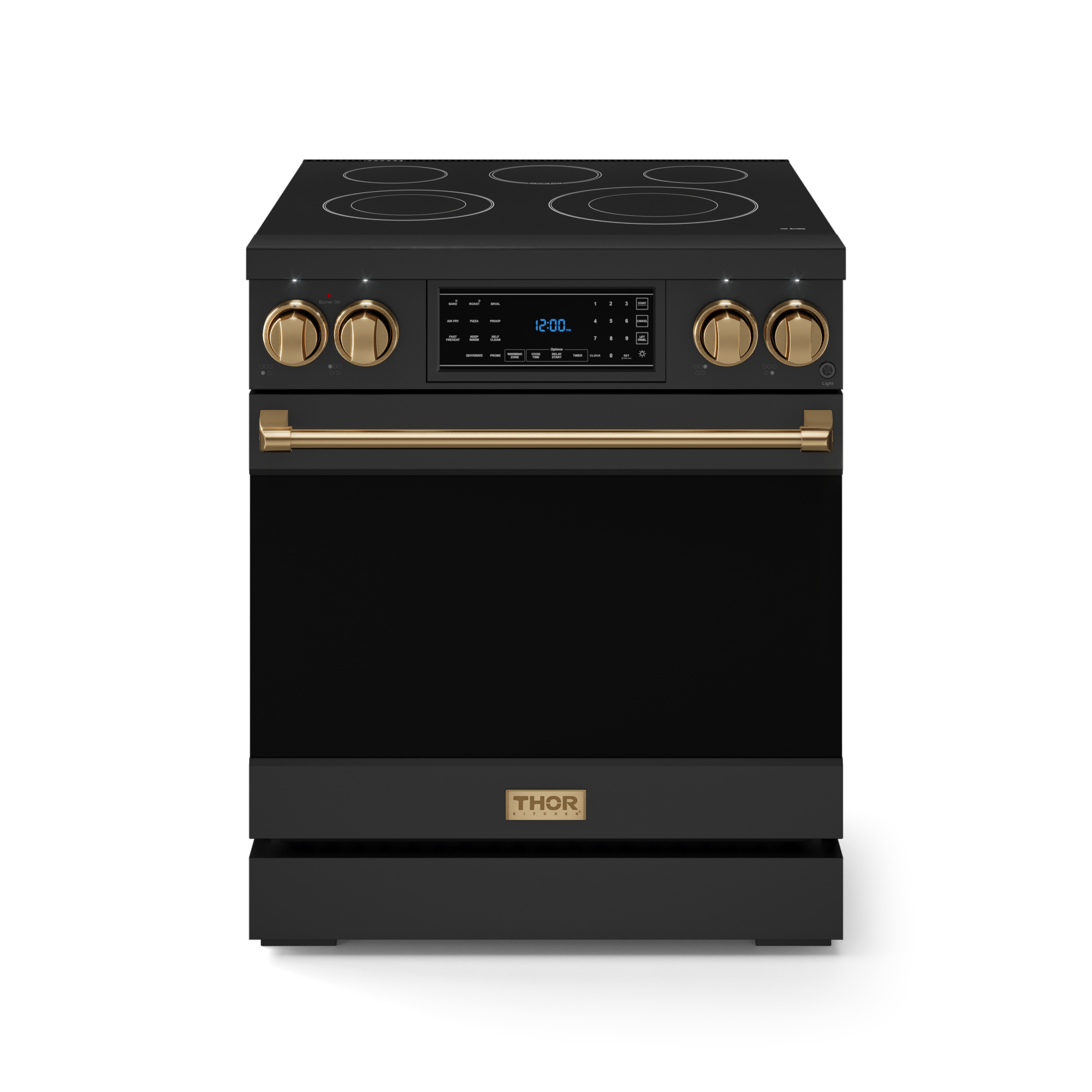

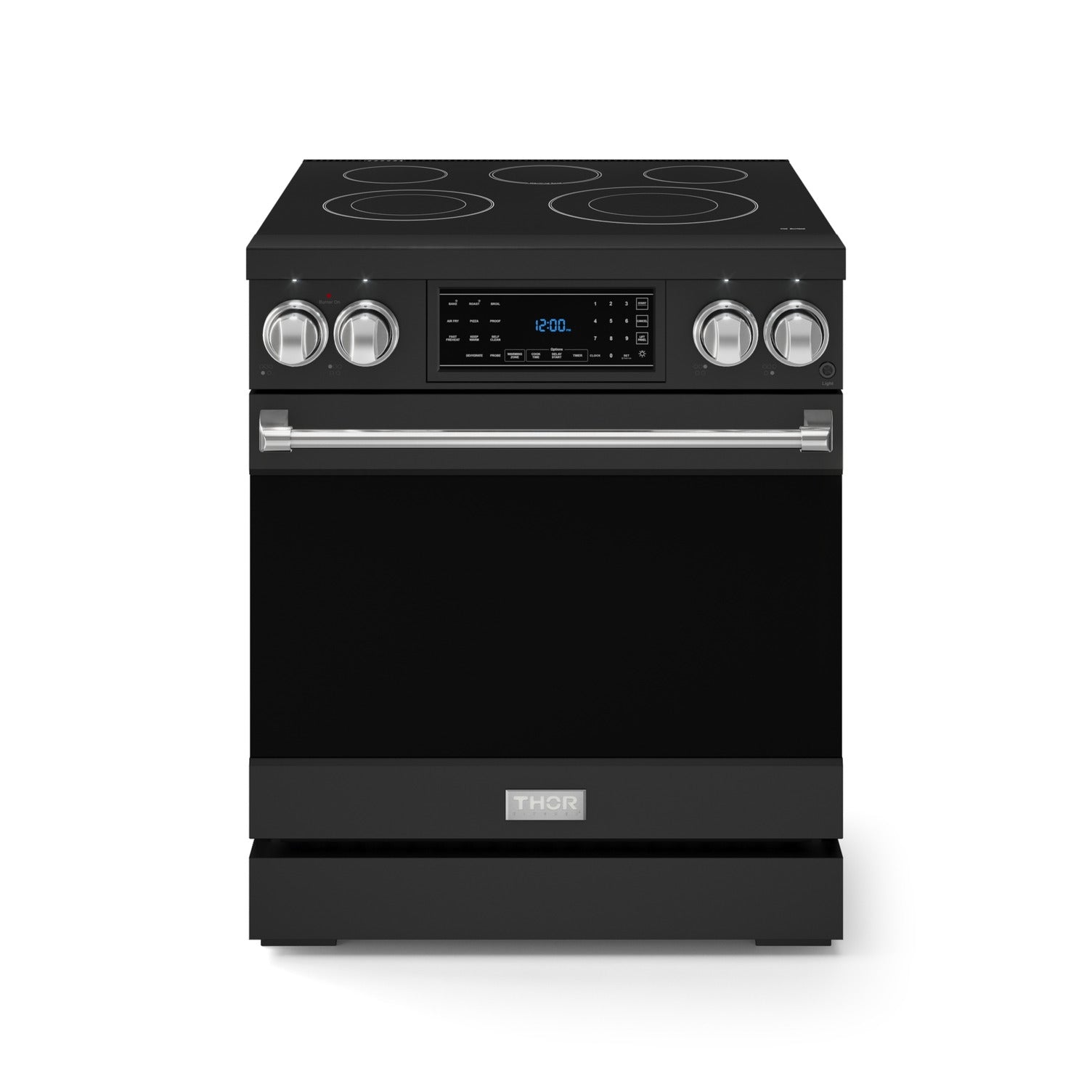

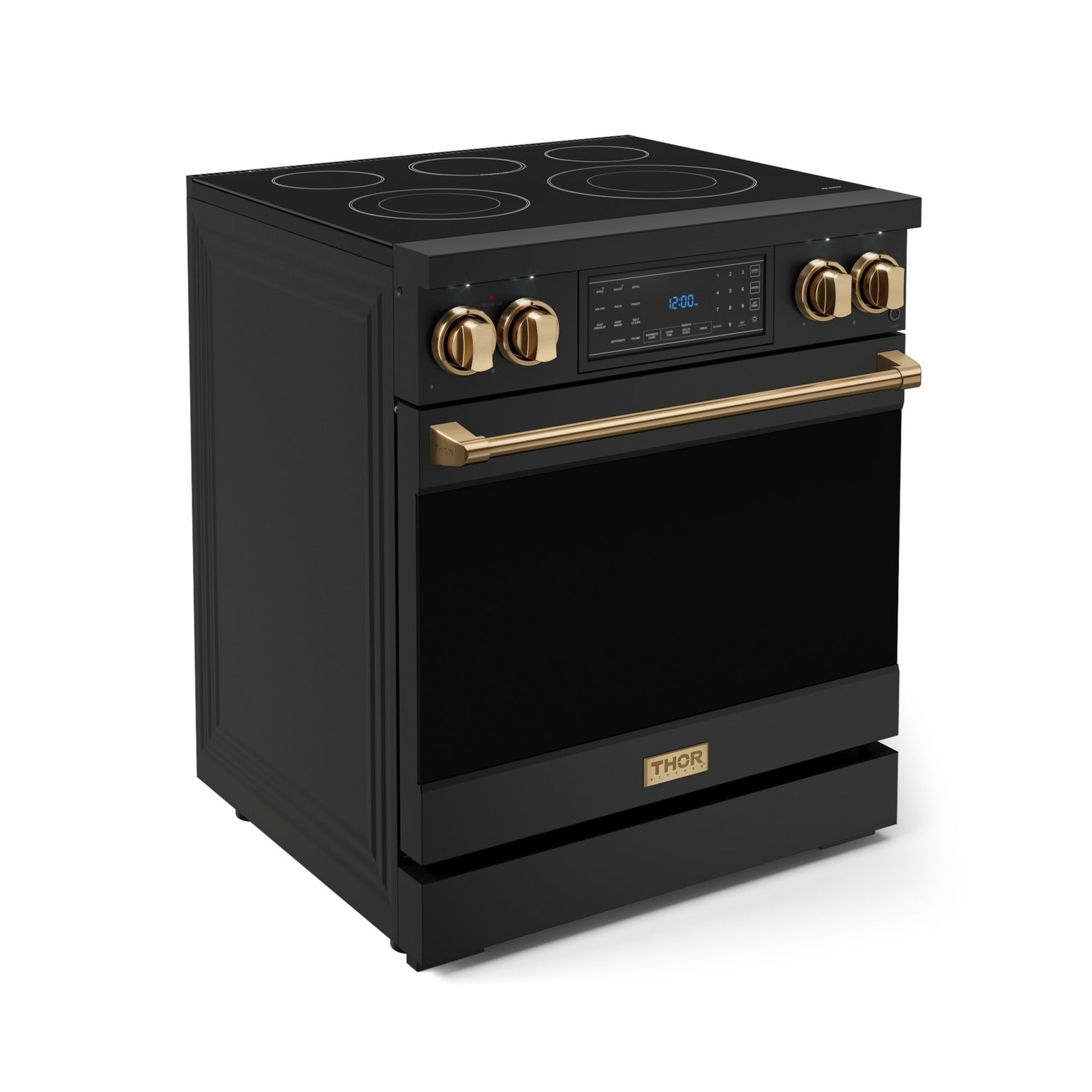

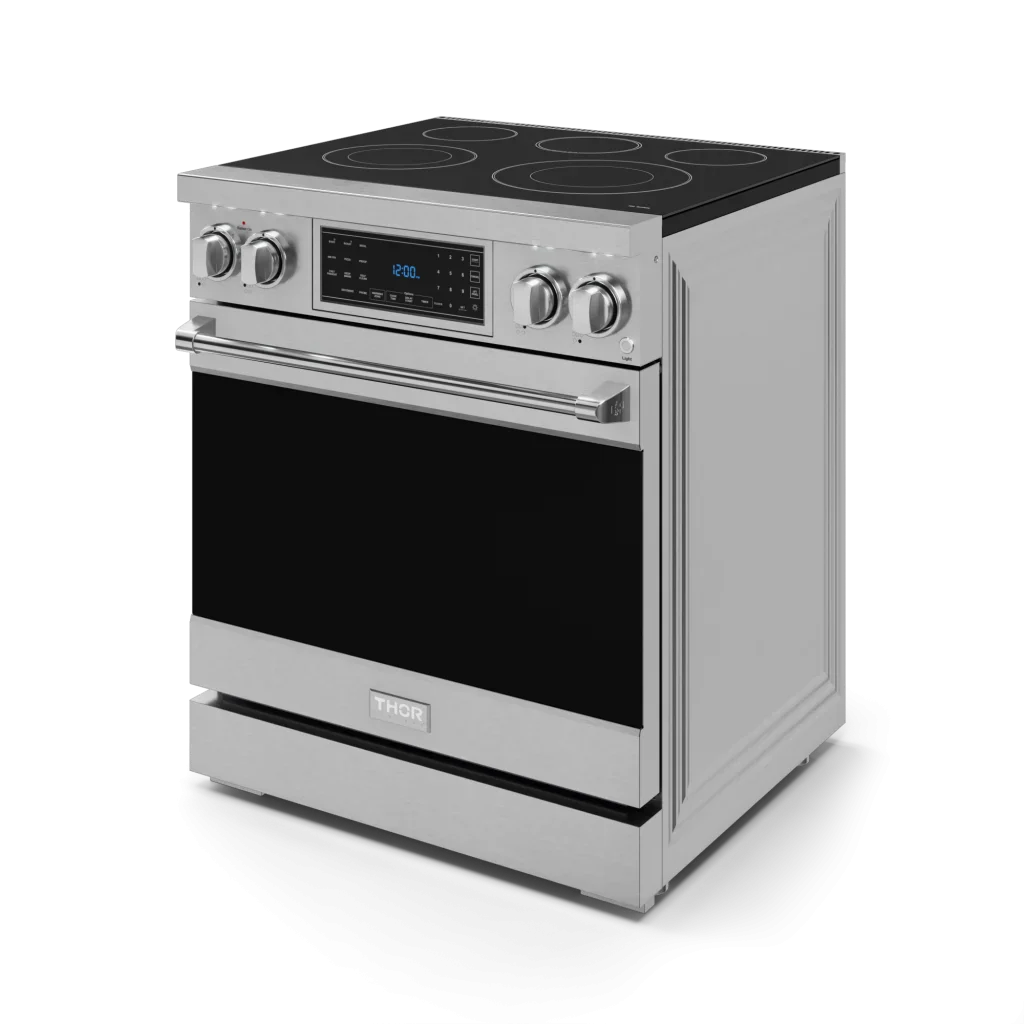

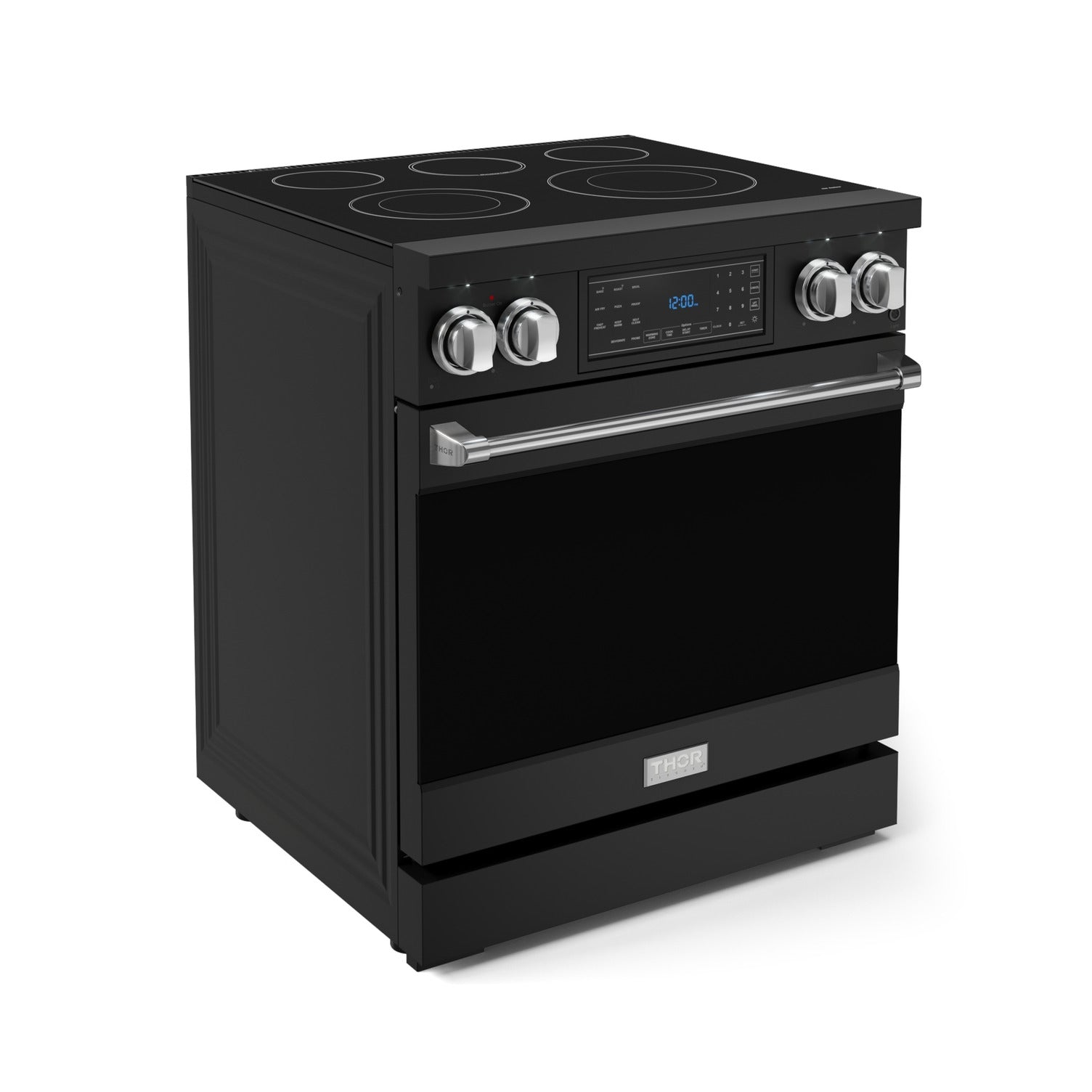

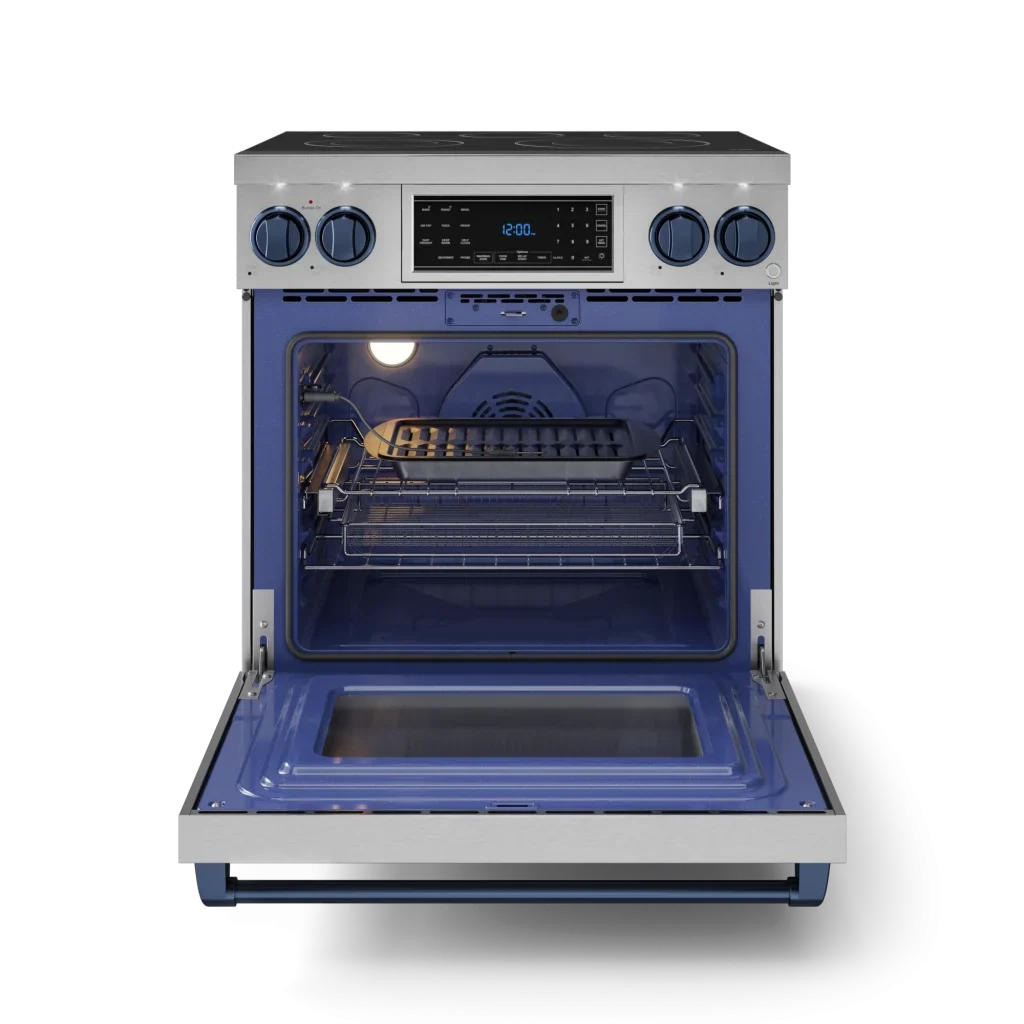

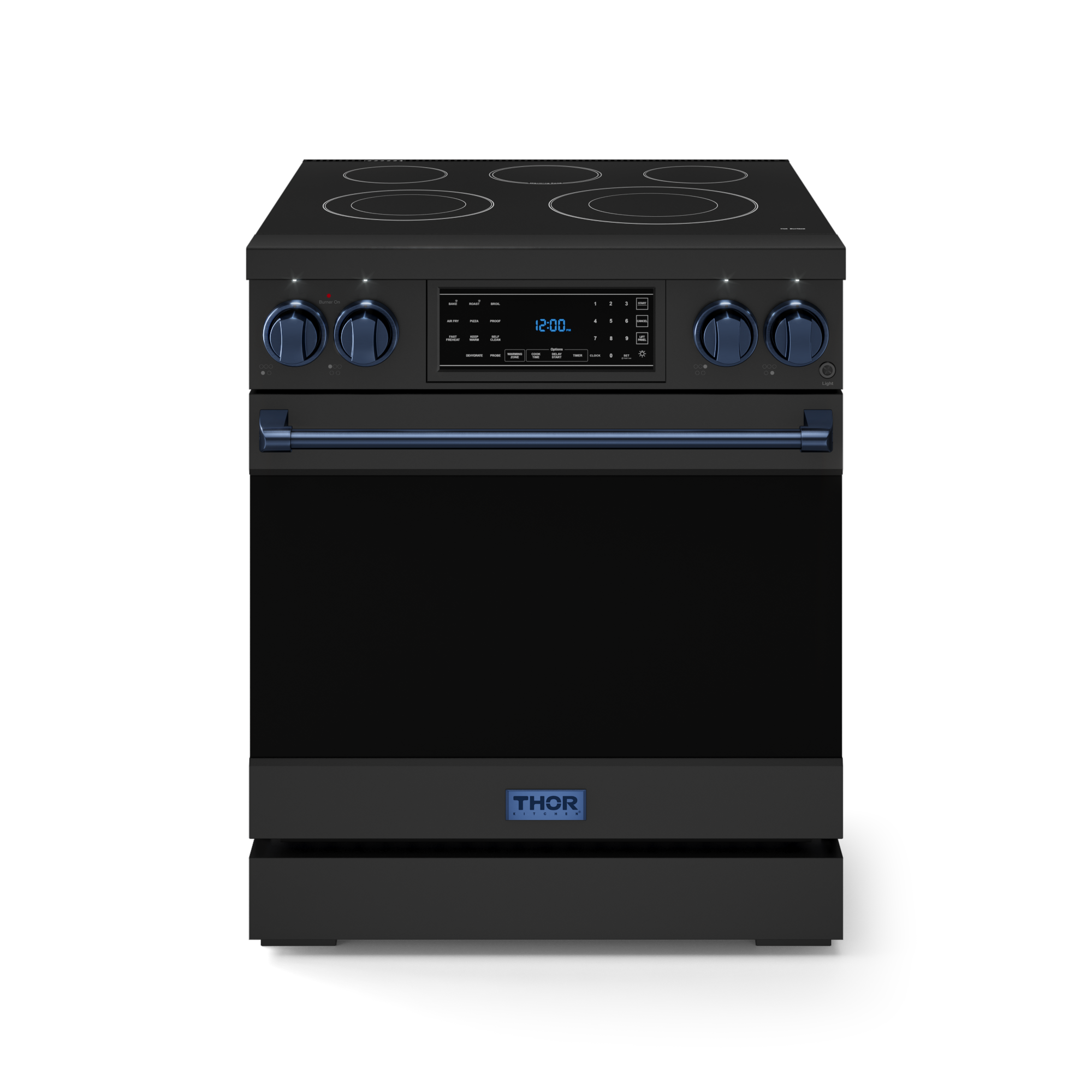

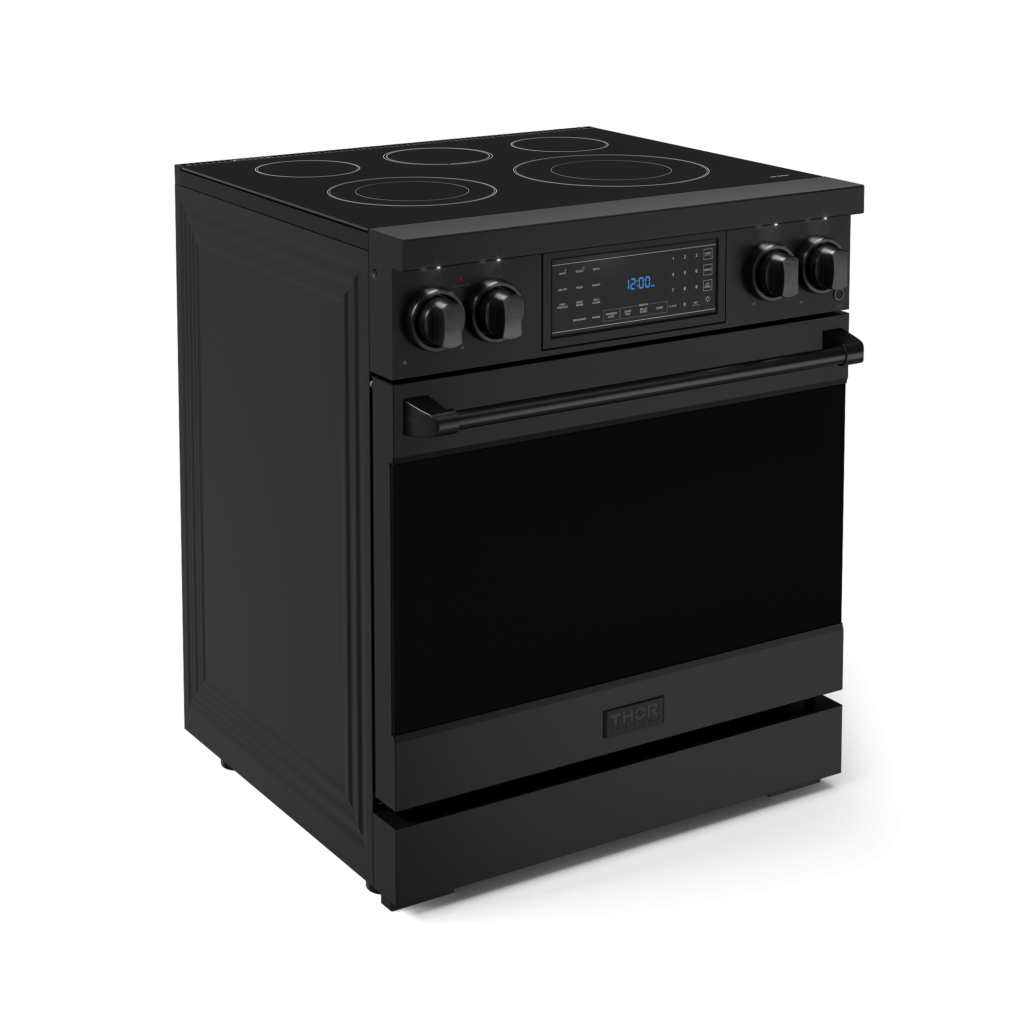

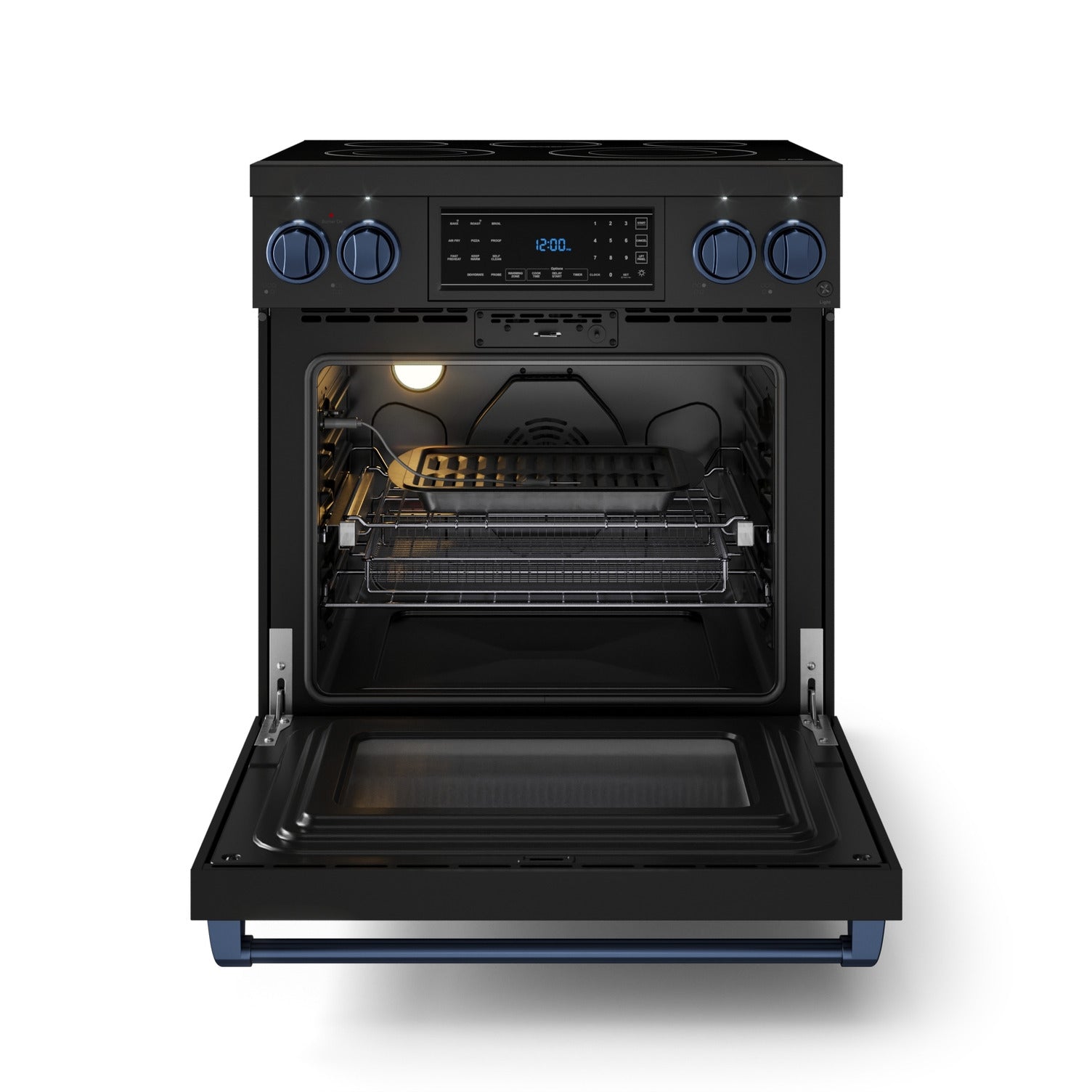

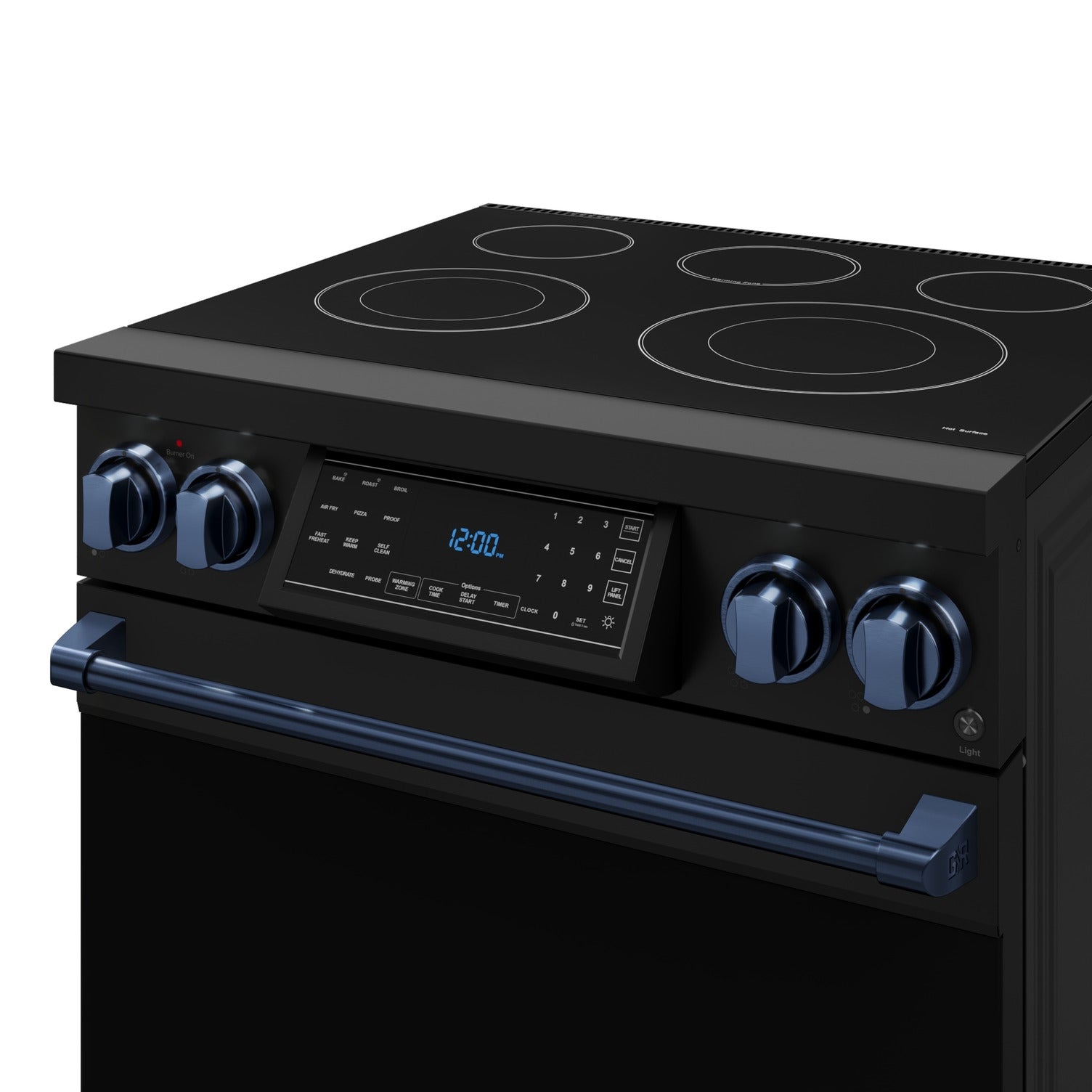

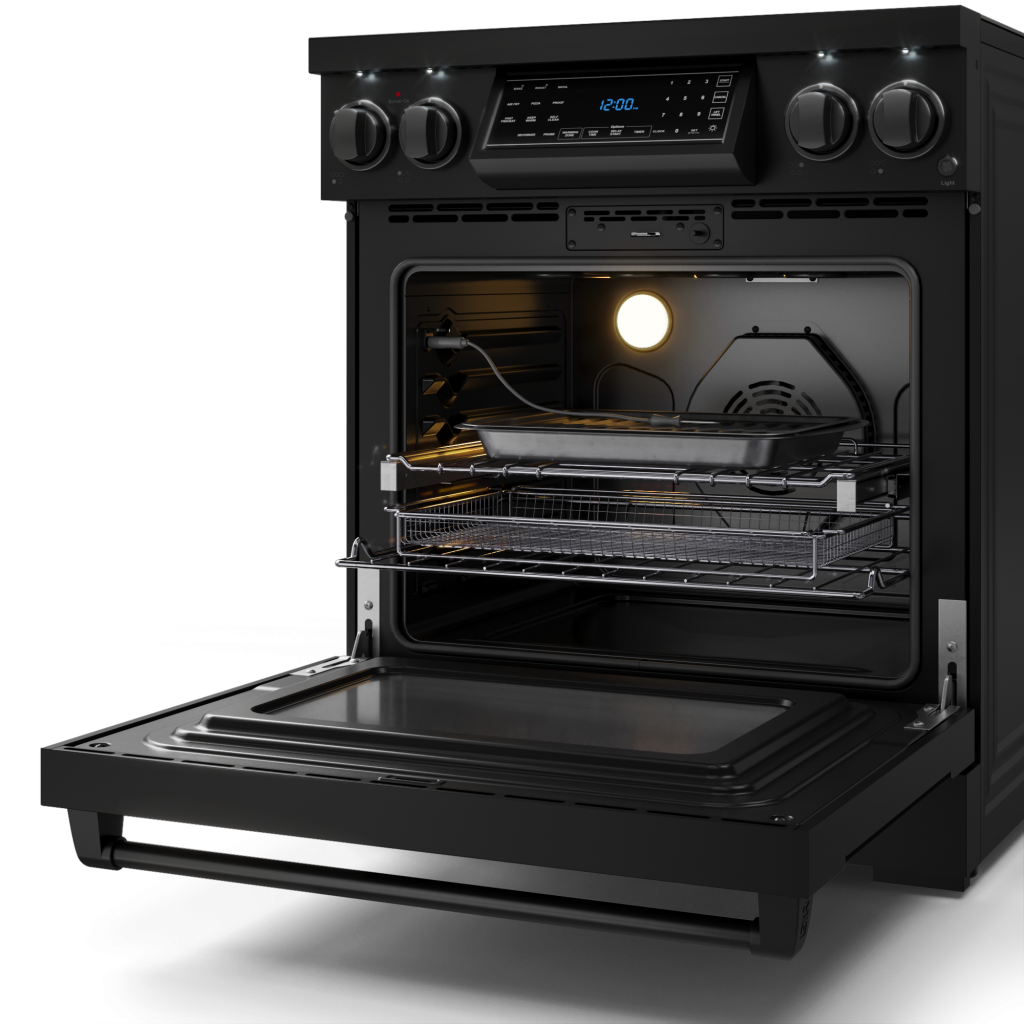

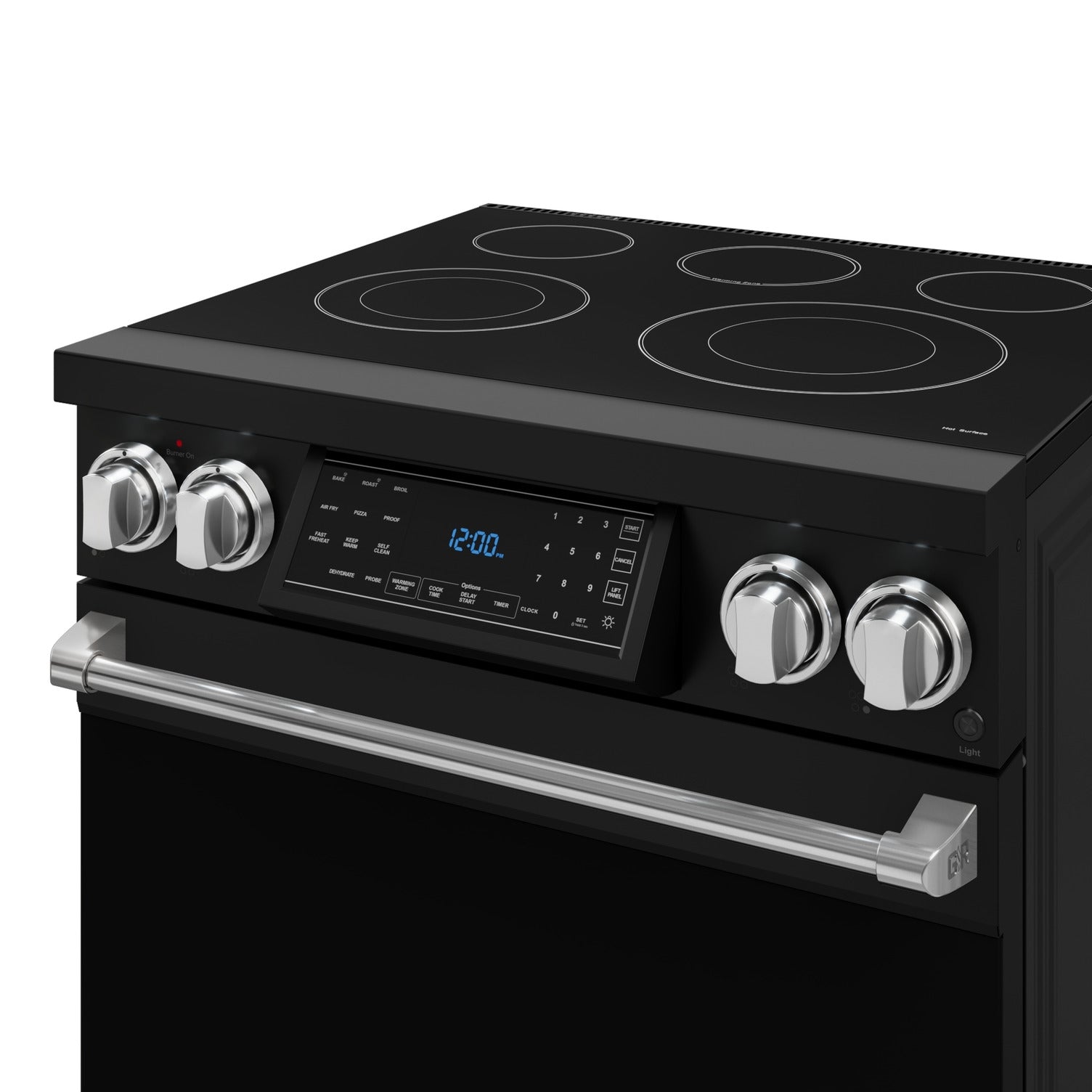

30 Inch Professional Electric Range with Tilt Panel Touch Control in Black | Gordon Ramsay Series – RSE30B

Q: Spec and Manual

Specification and Manual 📄 Specification Sheet 📄 Use and Care Manual 📄 Installation Manual

Designed for chefs who demand precision and power. With high-output burners, even heat distribution, and intuitive controls, this 30 Inch Professional Electric Range in Black elevates your cooking experience. Built for durability and performance, it brings restaurant-grade quality to your home kitchen, making every meal exceptional.

$ 3,059.00

$ 3,599.00

Accent Color:

Base Color:

Black Stainless Steel

Fuel Type:

Electric Natural Gas

Variant

30 Inch Professional Range with Tilt Panel Touch Control | Gordon Ramsay Series

$ 3,059.00

$ 3,599.00

Technical Details
Fuel Type	Electric
Construction	Freestanding
Burner Type	Radiant
Type of Grate	N/A
Watts (W) / Max BTU	3,000 W
Amperage	50A
Volts (V)	240V
Frequency (Hz)	60Hz

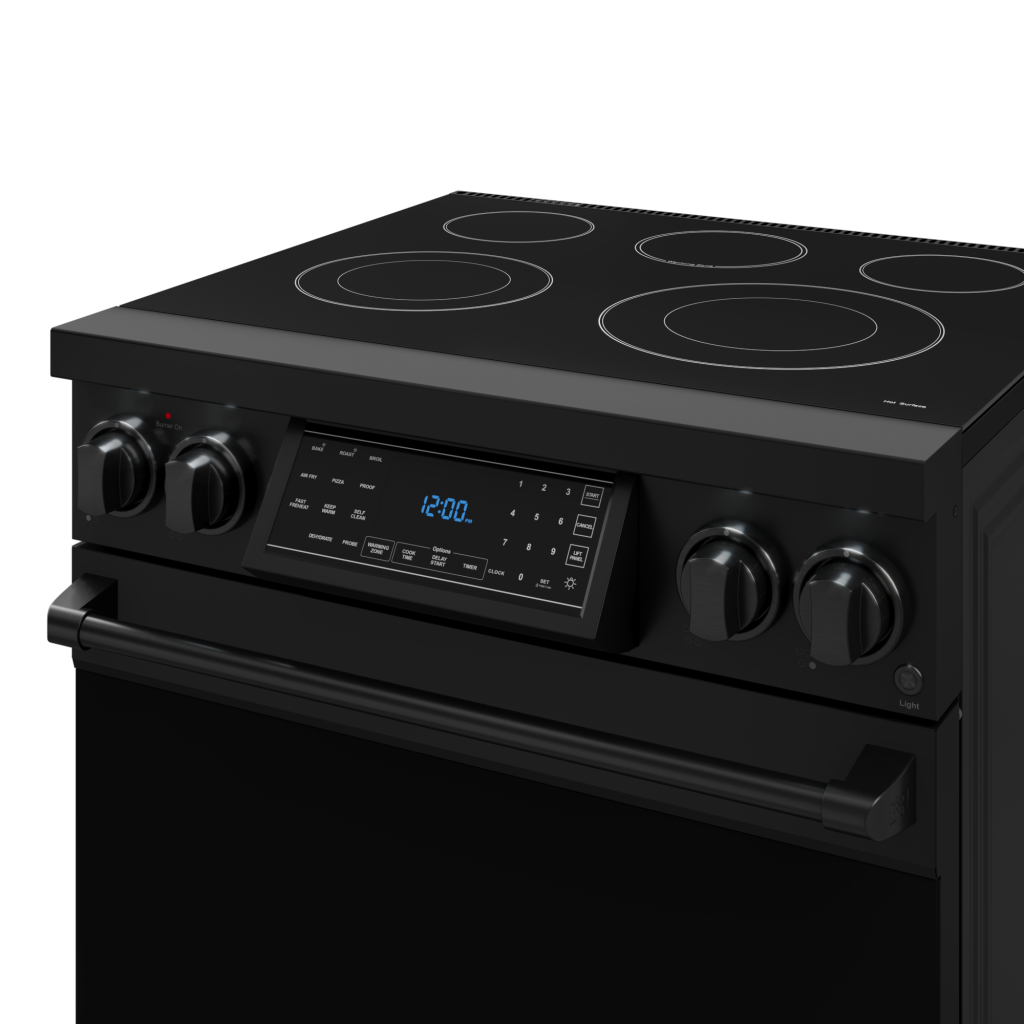

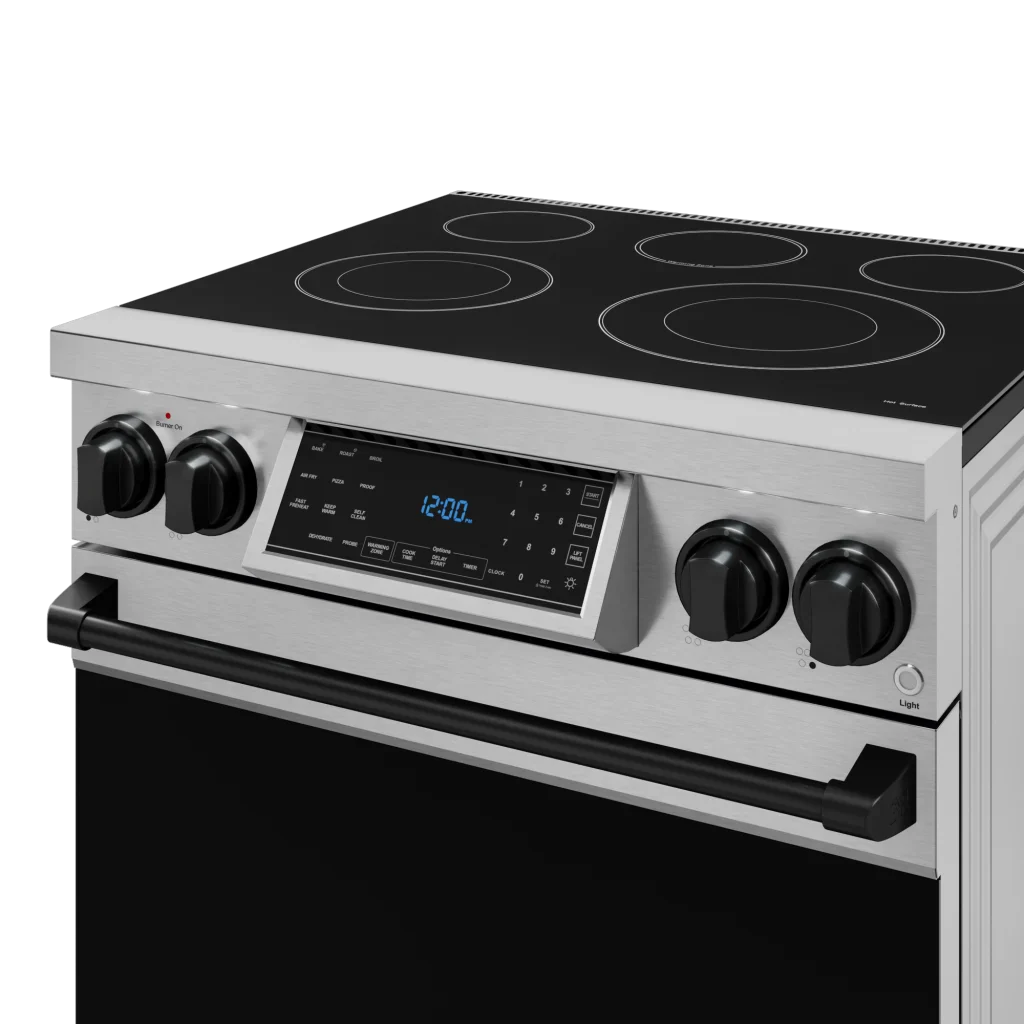

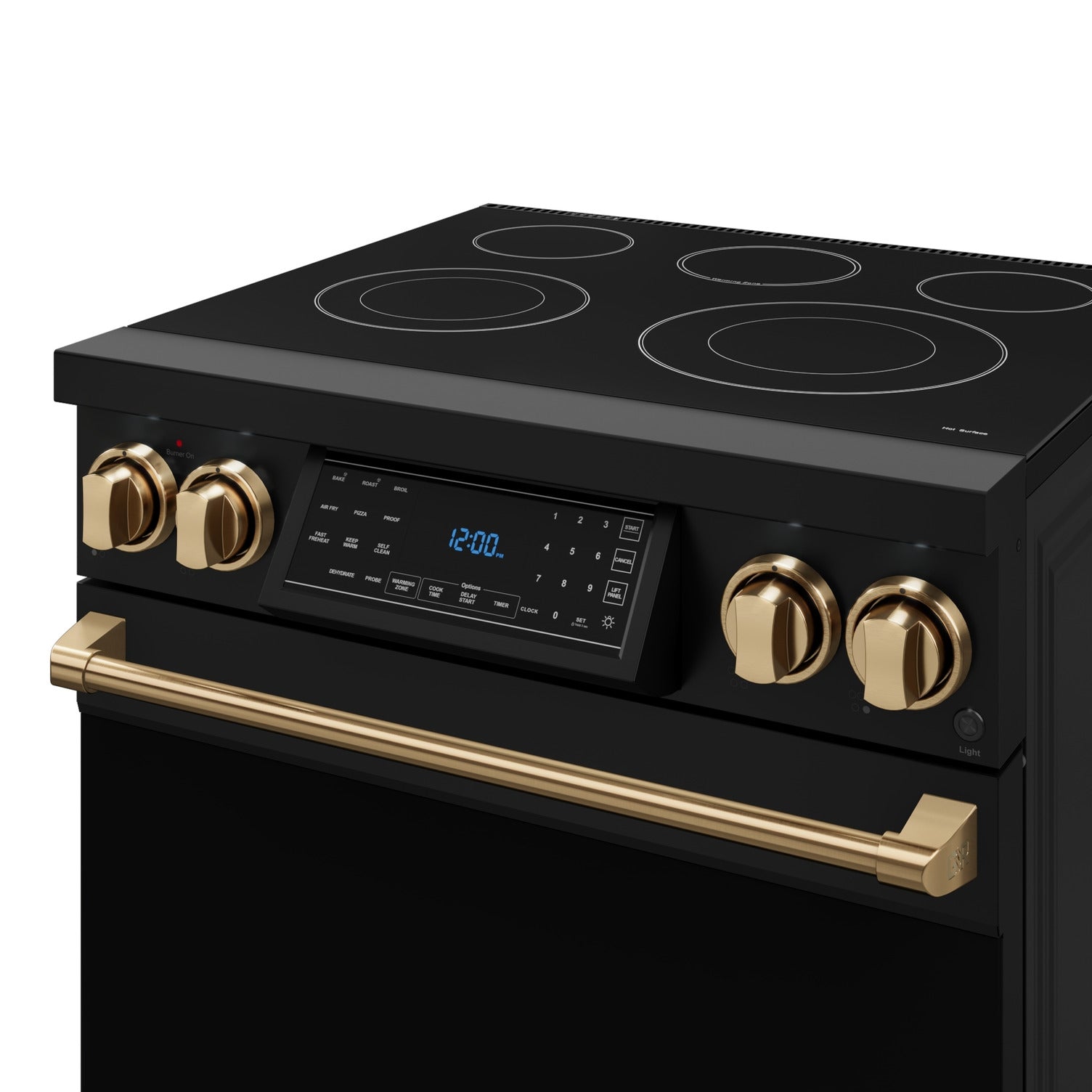

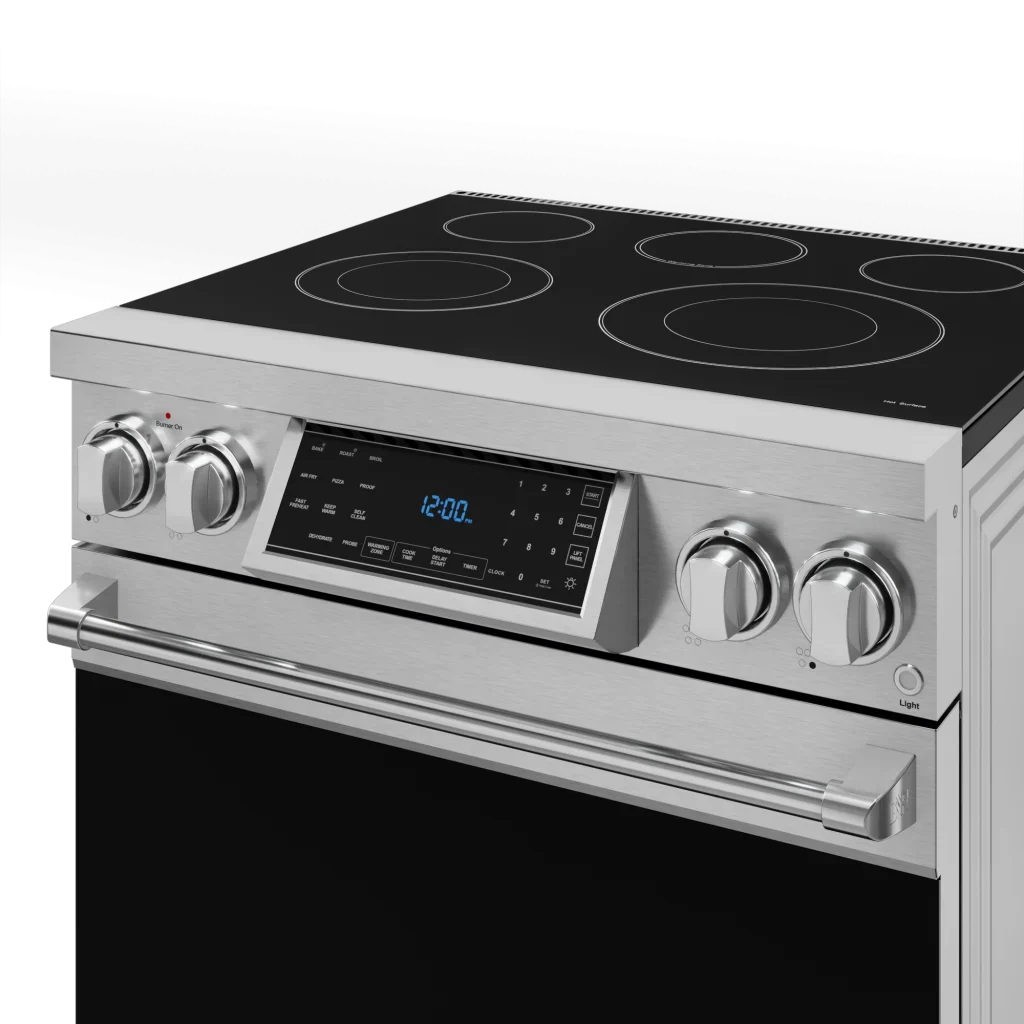

Control Type	Knob / Touch Screen
Panel light	Yes
Plug Type	50 Amp 4-Prong
Power Cord Length (in.)	US – Not Included (Canada Included)

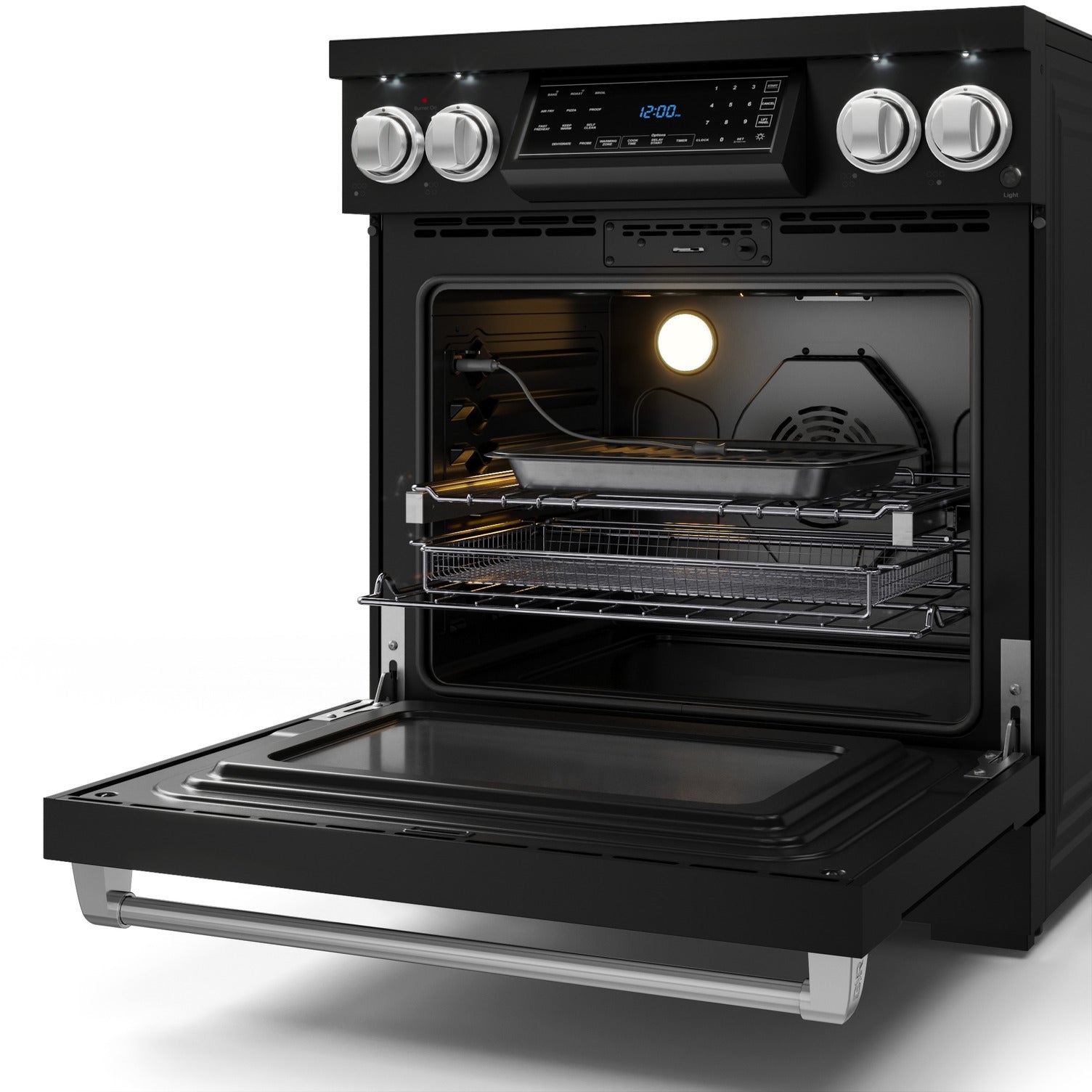

Oven Performance
Oven Capacity (cu. Ft.)	4.55 cu. ft.
Oven Control Features:	Light On/Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self Clean, Control Lock Capability, Sabbath Mode, Temperature Probe C° or F° Programmable
Oven Cooking Modes	Bake, Conv Bake, Roast, Conv Roast, Air Fry, Pizza, Proof, Keep Warm, Fast Preheat, Dehydrate
Bake Element Power	3000 W
Broil Element Power	3500 W
Convection	True Convection With 800 W Heating Element
Oven Lights	Yes
Oven Racks (Standard)	1
Oven Racks (Telescopic)	1
Baking Sheet Size	Fits 23” x 16” Baking Sheet
Self Clean (Y/N)	Y
Sabbath Mode (Y/N)	Y
Air Fry	Y

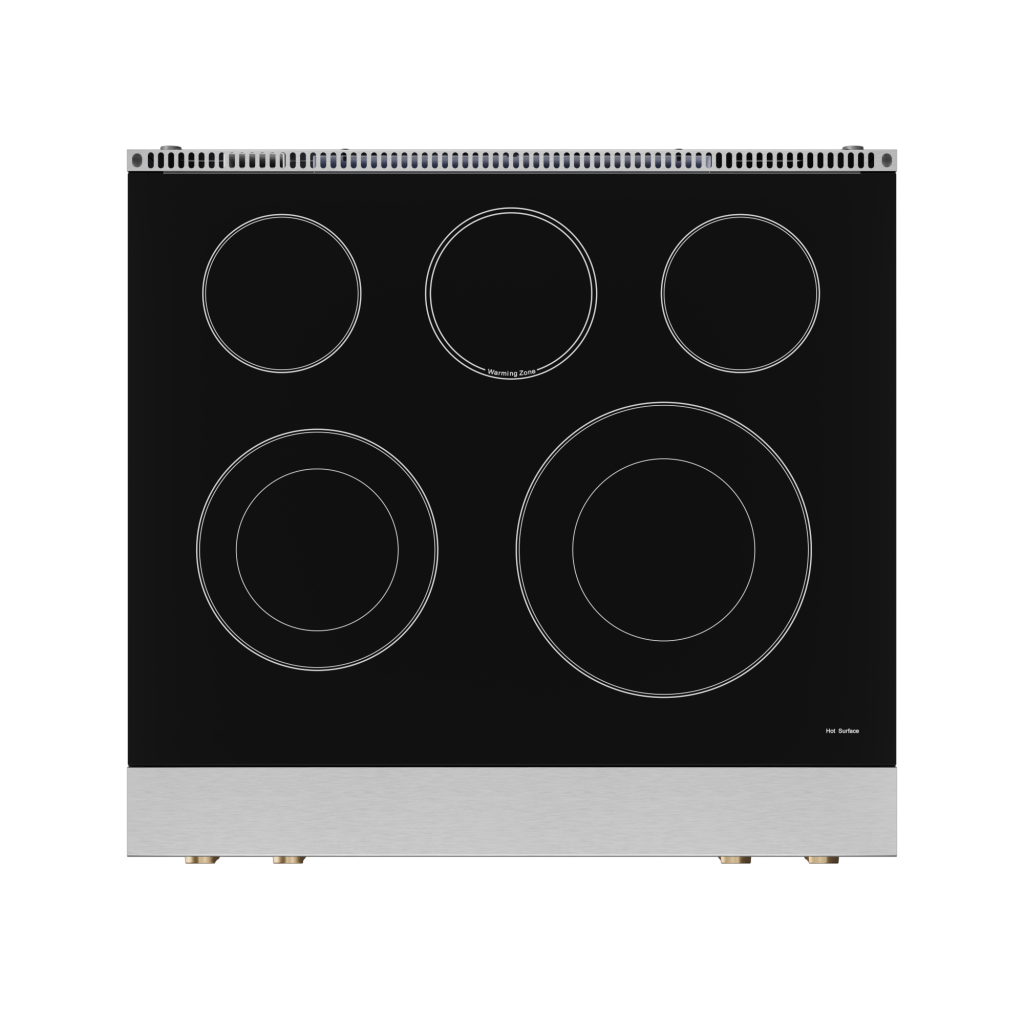

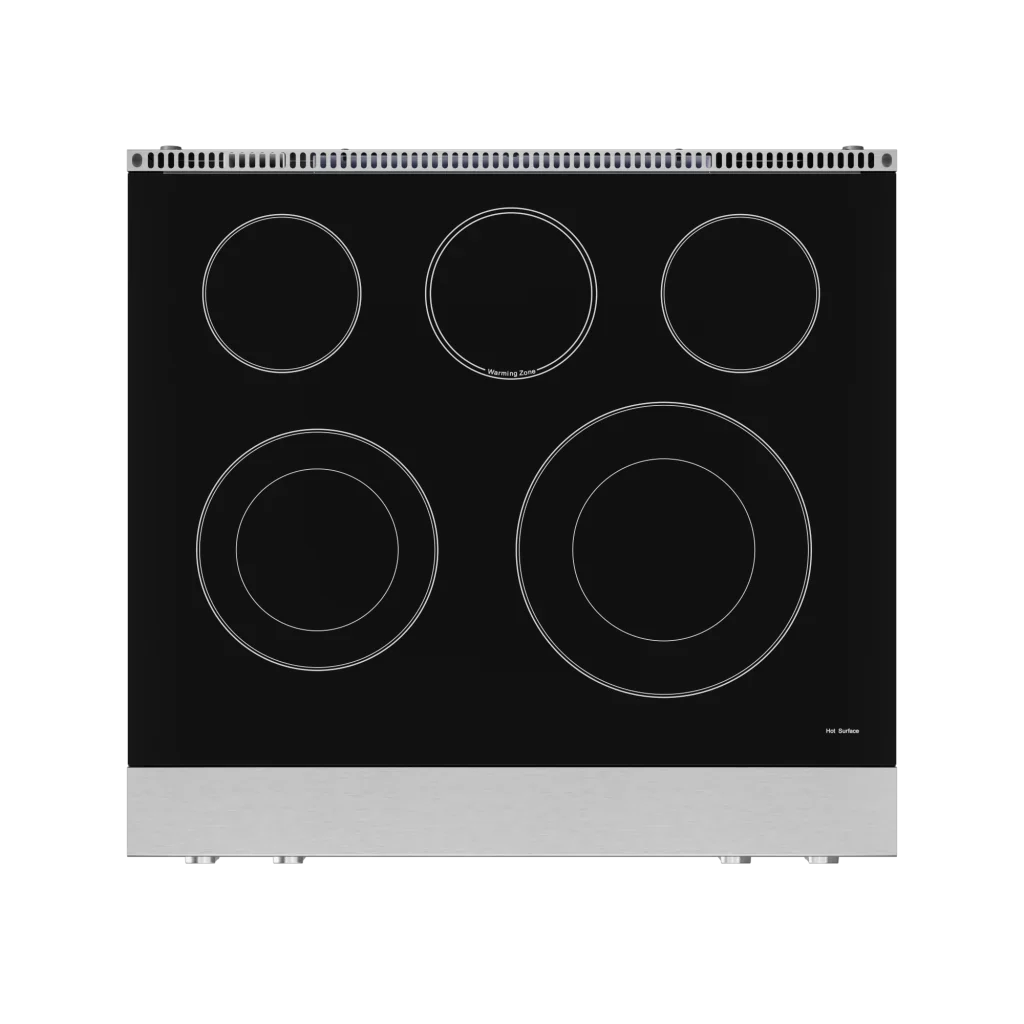

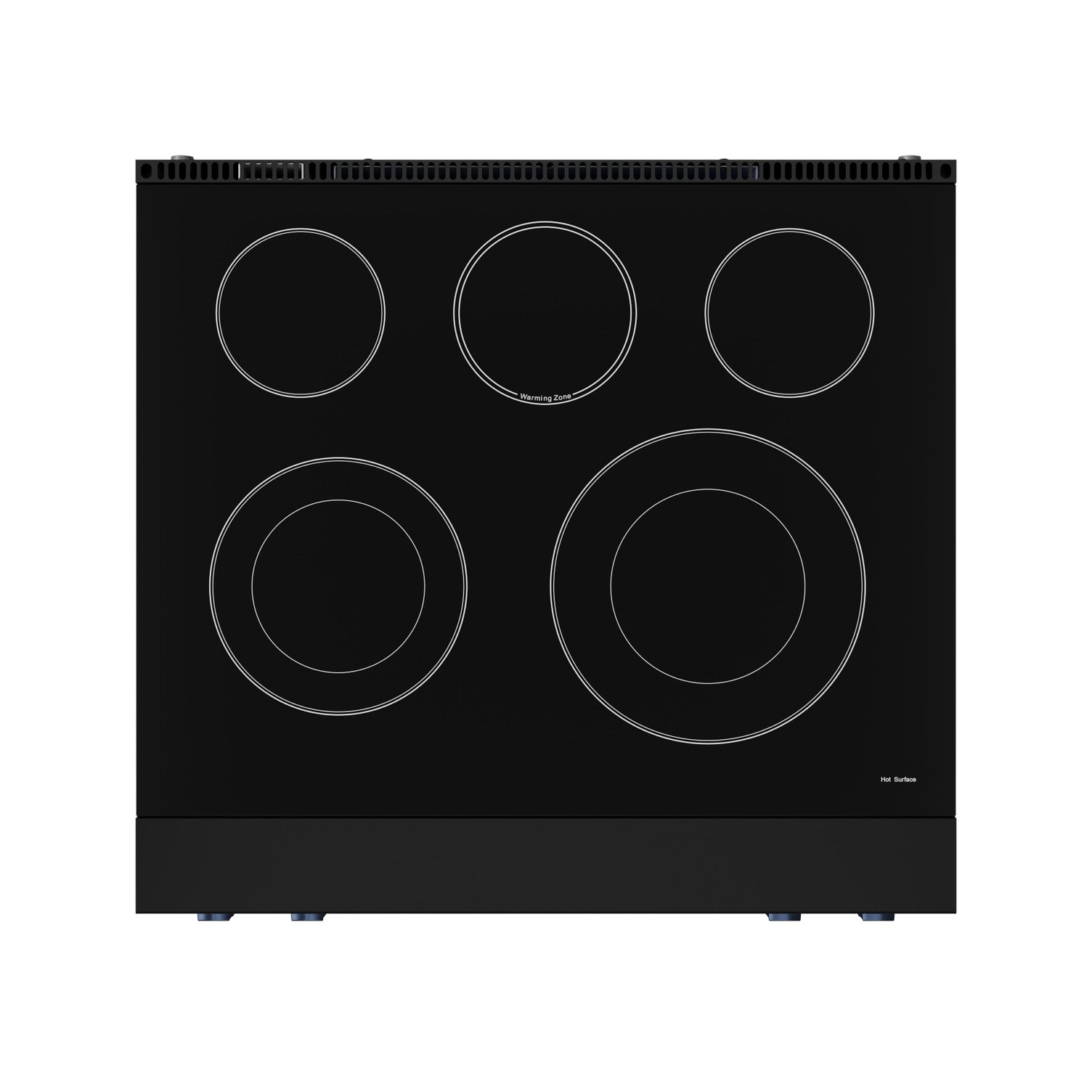

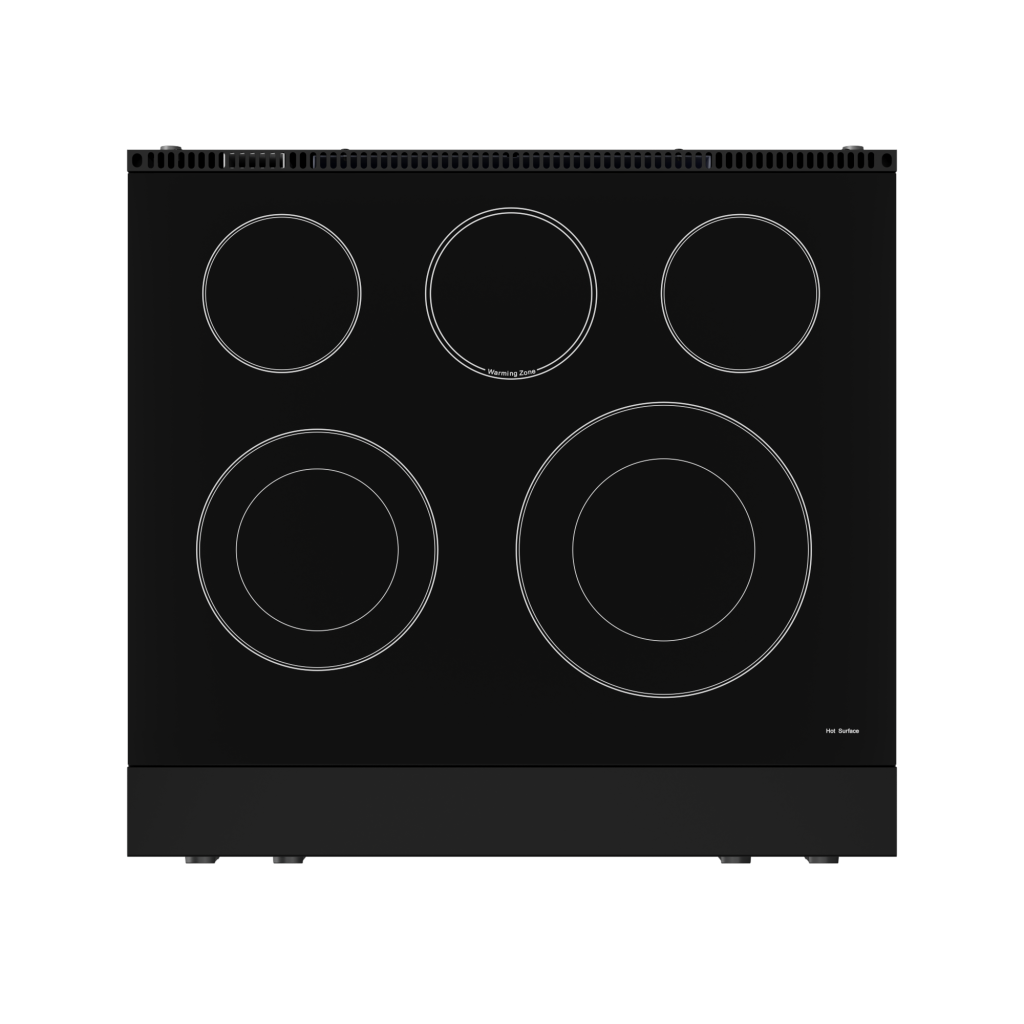

Cooktop Performance
Total Elements	5
Front Left Element	3,000W (1,500W & 1,500W)
Front Right Element	3,000W (1,800W & 1,200W)
Rear Left Element	1,200W
Rear Center Element	100W
Rear Right Burner	1,200W

Dimensions
Product Dimensions (WxDxH)	29-7/8” x 29-3/4” x 36”
Rubber Spacer Depth (Install On Back Panel)	3/4″
Product Height (From Bottom To Top Of Back Splash)	36″
Product Height (From Bottom To Top Of Side Panel)	36″
Product Depth (From Back Panel To Handle)	29″
Product Depth (From Back Panel To Bullnose)	27-1/2”
Product Depth (From Back Panel To Control Panel)	26-3/8”
Product Depth (From Back Panel To Side Panel Front)	24″
Cutout Dimensions (WxDxH)	30” x 24-3/4” x 36” - 39”
Adjustable Height	3” Max
Package Dimensions (WxDxH)	32” x 32” x 45-1/16”

Weight
Net weight	201 lbs.
Gross weight	245 lbs.

Oven Dimensions
Oven Internal Width	23-3/4”
Oven Internal Depth	19-1/2”
Oven Internal Height	18”

Cutout
Cutout Height	36 (min.) – 39 (max.) (in)
Cutout Width	30 (in.)
Cutout Depth	24 3/4 (in.)

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Fuel Type	Electric
Construction	Freestanding
Burner Type	Radiant
Type of Grate	N/A
Watts (W) / Max BTU	3,000 W
Amperage	50A
Volts (V)	240V
Frequency (Hz)	60Hz
Control Type	Knob / Touch Screen
Panel light	Yes
Plug Type	50 Amp 4-Prong
Power Cord Length (in.)	US – Not Included (Canada Included)

Oven Performance
Oven Capacity (cu. Ft.)	4.55 cu. ft.
Oven Control Features:	Light On/Off, Clock & Kitchen Timer, Time Cooking, Delay Start, Self Clean, Control Lock Capability, Sabbath Mode, Temperature Probe C° or F° Programmable
Oven Cooking Modes	Bake, Conv Bake, Roast, Conv Roast, Air Fry, Pizza, Proof, Keep Warm, Fast Preheat, Dehydrate
Bake Element Power	3000 W
Broil Element Power	3500 W
Convection	True Convection With 800 W Heating Element
Oven Lights	Yes
Oven Racks (Standard)	1
Oven Racks (Telescopic)	1
Baking Sheet Size	Fits 23” x 16” Baking Sheet
Self Clean (Y/N)	Y
Sabbath Mode (Y/N)	Y
Air Fry	Y

Cooktop Performance
Total Elements	5
Front Left Element	3,000W (1,500W & 1,500W)
Front Right Element	3,000W (1,800W & 1,200W)
Rear Left Element	1,200W
Rear Center Element	100W
Rear Right Burner	1,200W

Dimension and Weight

Dimensions
Product Dimensions (WxDxH)	29-7/8” x 29-3/4” x 36”
Rubber Spacer Depth (Install On Back Panel)	3/4″
Product Height (From Bottom To Top Of Back Splash)	36″
Product Height (From Bottom To Top Of Side Panel)	36″
Product Depth (From Back Panel To Handle)	29″
Product Depth (From Back Panel To Bullnose)	27-1/2”
Product Depth (From Back Panel To Control Panel)	26-3/8”
Product Depth (From Back Panel To Side Panel Front)	24″
Cutout Dimensions (WxDxH)	30” x 24-3/4” x 36” - 39”
Adjustable Height	3” Max
Package Dimensions (WxDxH)	32” x 32” x 45-1/16”
