Technical Details Lighting 2 Level 7W LED Strip Noise Level (Max) 65 dB Power 120V Frequency 60Hz Amperage 3A Filter Type Aluminum Mesh Blower Type Internal Control Type 3 Speed Touch Control Accessories (not included) Charcoal Filter (FT0130) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AP) Color/Finish Stainless Steel Blower Rating Blower Ratings CFM (dBA) Low 232 47 Medium 330 55 High 550 65

Dimensions Product Size (Inch) (W*D*H) 36″ – 19 3/4″ – 10 13/16″ Ducted Hood Height (Inch) 26 9/16″ – 41 15/16″ Weight Net Weight 26 lbs. Gross weight 38.4 lbs.

CUTOUT Cutout Width 36 Inch Cutout Depth 19 3/4 Inch Cutout Height 41 15/16 Inch

ARH36P

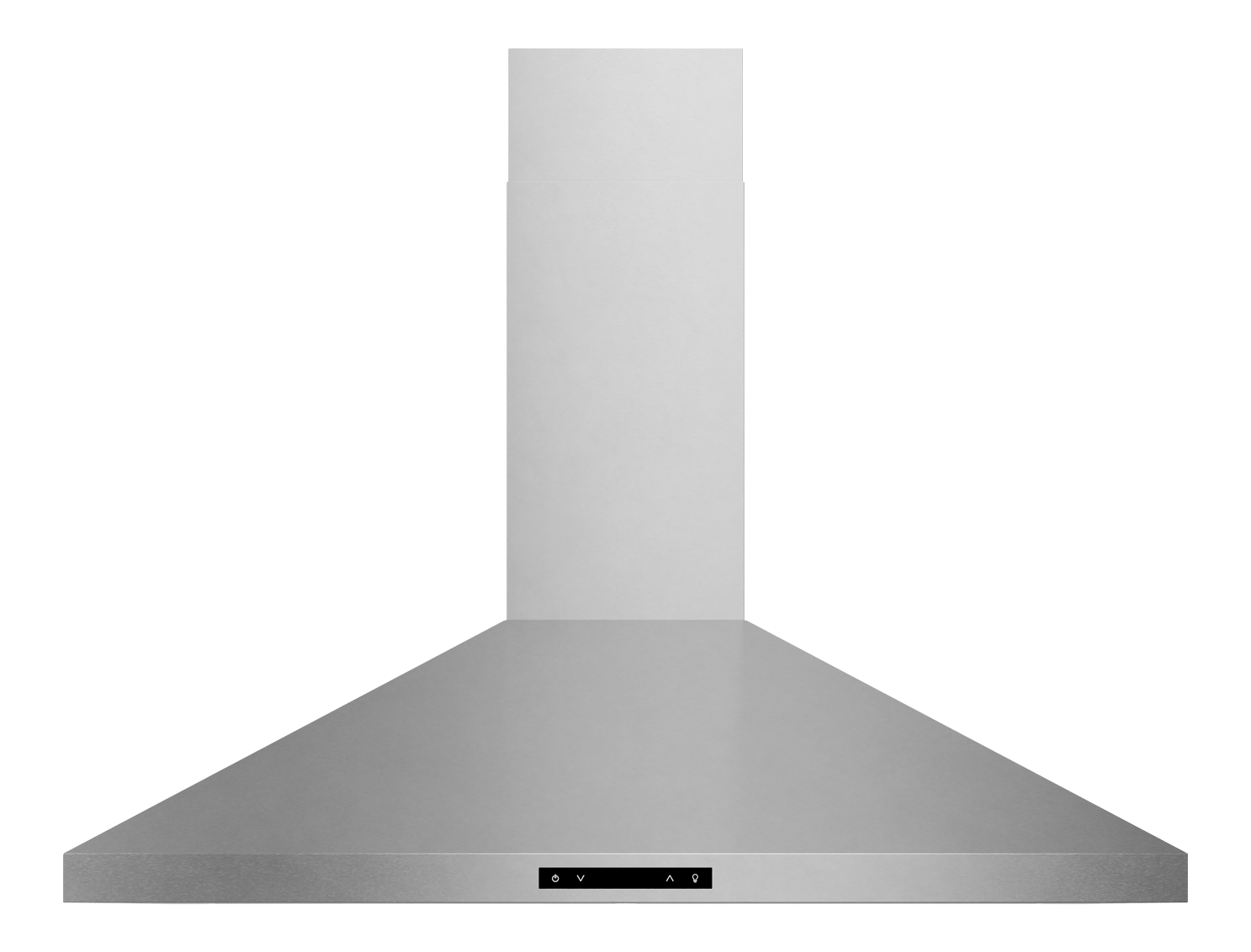

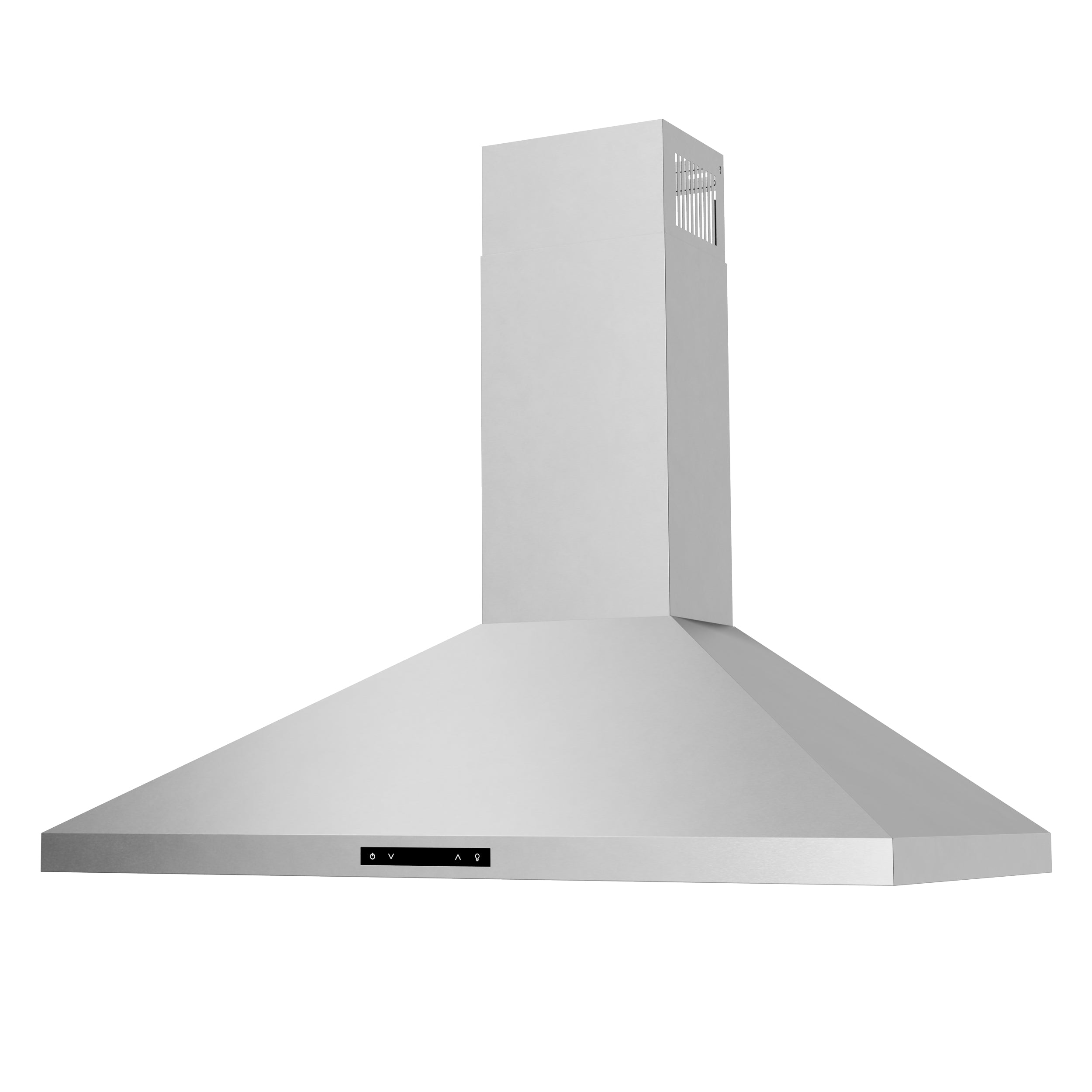

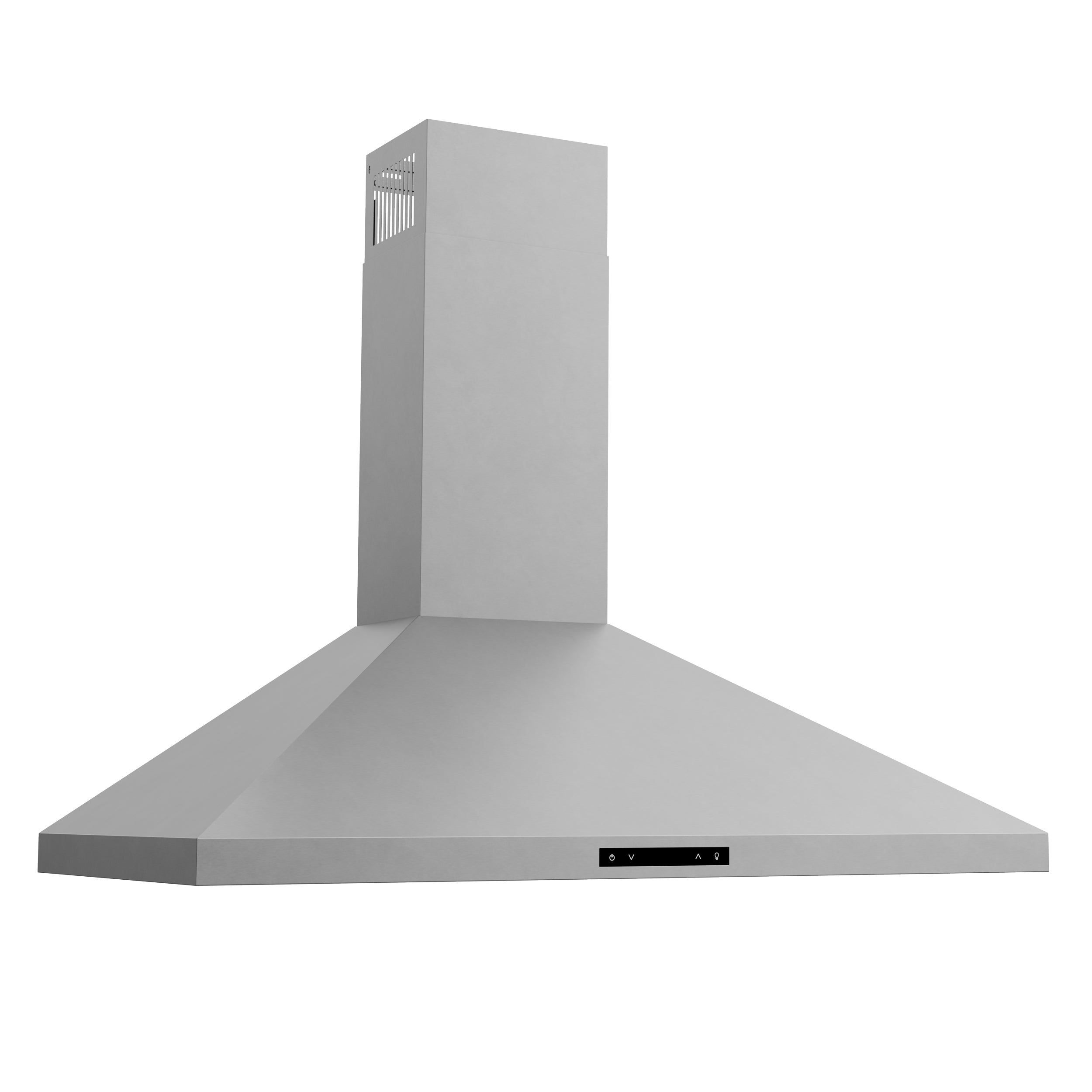

36 Inch Contemporary Wall Mount Pyramid Shape Range Hood - Model ARH36P

Name: 36 Inch Contemporary Wall Mount Pyramid Shape Range Hood - Model ARH36P
Brand: thorkitchen.com
SKU: ARH36P
Price: 899.10 USD
Availability: InStock

THOR Kitchen offers the power and performance of a premium pro-style appliance at a practical price. The 36-Inch Pyramid Professional Range Hood in Stainless Steel combines power and style, enhancing your kitchen’s modern aesthetics while efficiently removing odors, smoke, and steam. Say goodbye to lingering food aromas and hello to a fresher kitchen. #cooklikeagod

$ 899.10

$ 1,299.00

$ 899.10

$ 1,299.00

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Lighting	2 Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0130) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AP)
Color/Finish	Stainless Steel

Blower Rating
Blower Ratings	CFM	(dBA)
Low	232	47
Medium	330	55
High	550	65

Dimensions
*Product Size (Inch) (WDH)*	36″ – 19 3/4″ – 10 13/16″
Ducted Hood Height (Inch)	26 9/16″ – 41 15/16″

Weight
Net Weight	26 lbs.
Gross weight	38.4 lbs.

CUTOUT
Cutout Width	36 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	41 15/16 Inch

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

Technical

Technical Details
Lighting	2 Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0130) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AP)
Color/Finish	Stainless Steel

Blower Rating
Blower Ratings	CFM	(dBA)
Low	232	47
Medium	330	55
High	550	65

Dimension and Weight

Dimensions
*Product Size (Inch) (WDH)*	36″ – 19 3/4″ – 10 13/16″
Ducted Hood Height (Inch)	26 9/16″ – 41 15/16″

Weight
Net Weight	26 lbs.
Gross weight	38.4 lbs.

Cutout

CUTOUT
Cutout Width	36 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	41 15/16 Inch

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual
📄 Installation Manual

PRODUCT FEATURES

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included)

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM

HEAT SENSOR

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency
REPLACEMENT INDICATOR

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included)
3 SPEED FUNCTION

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM

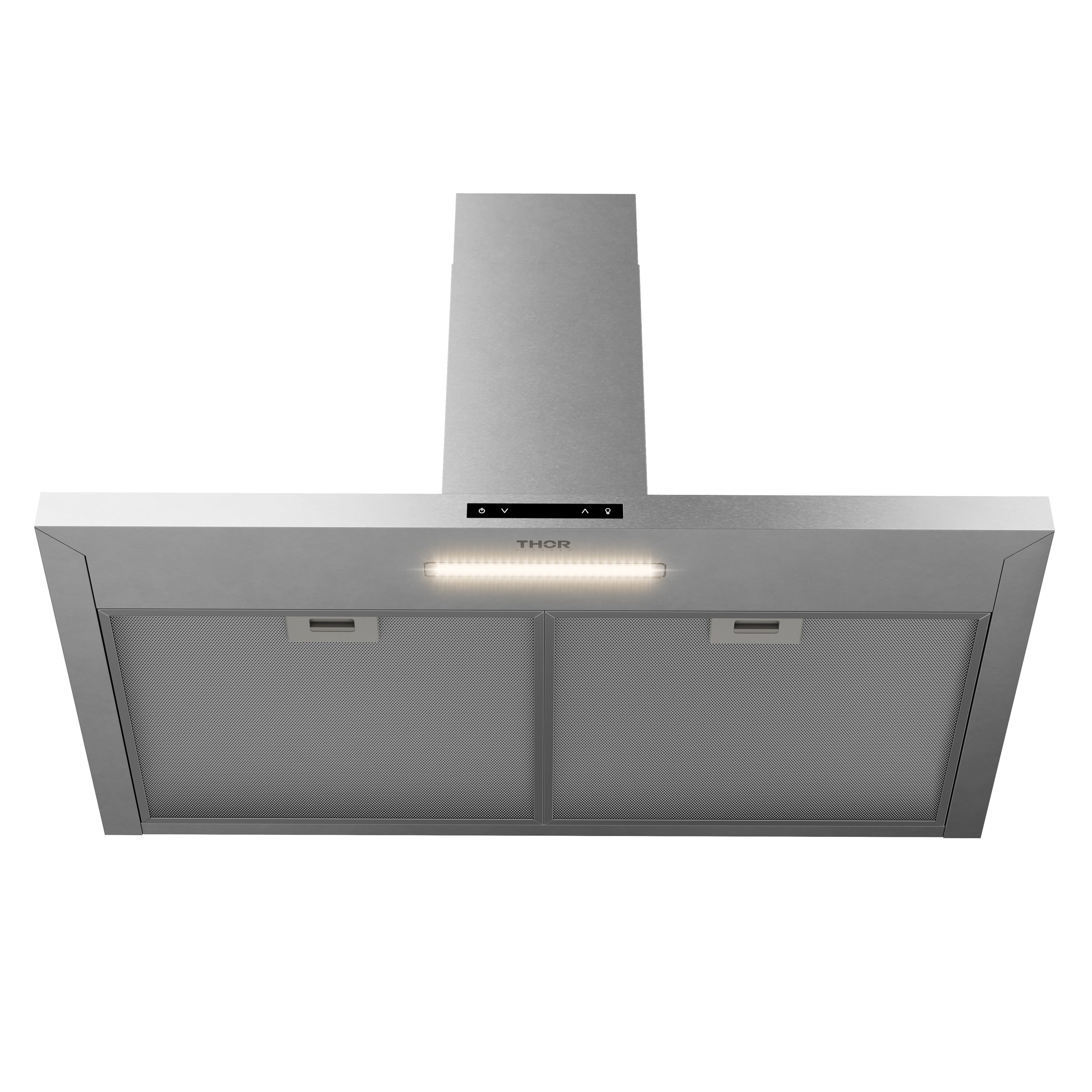

LED LIGHTING

Dual level LED light strip illuminates your cooking area
CONVERTIBLE

Vent out with additional charcoal filters (FT0136) and recirculation kit (ARC3601P) (not included)

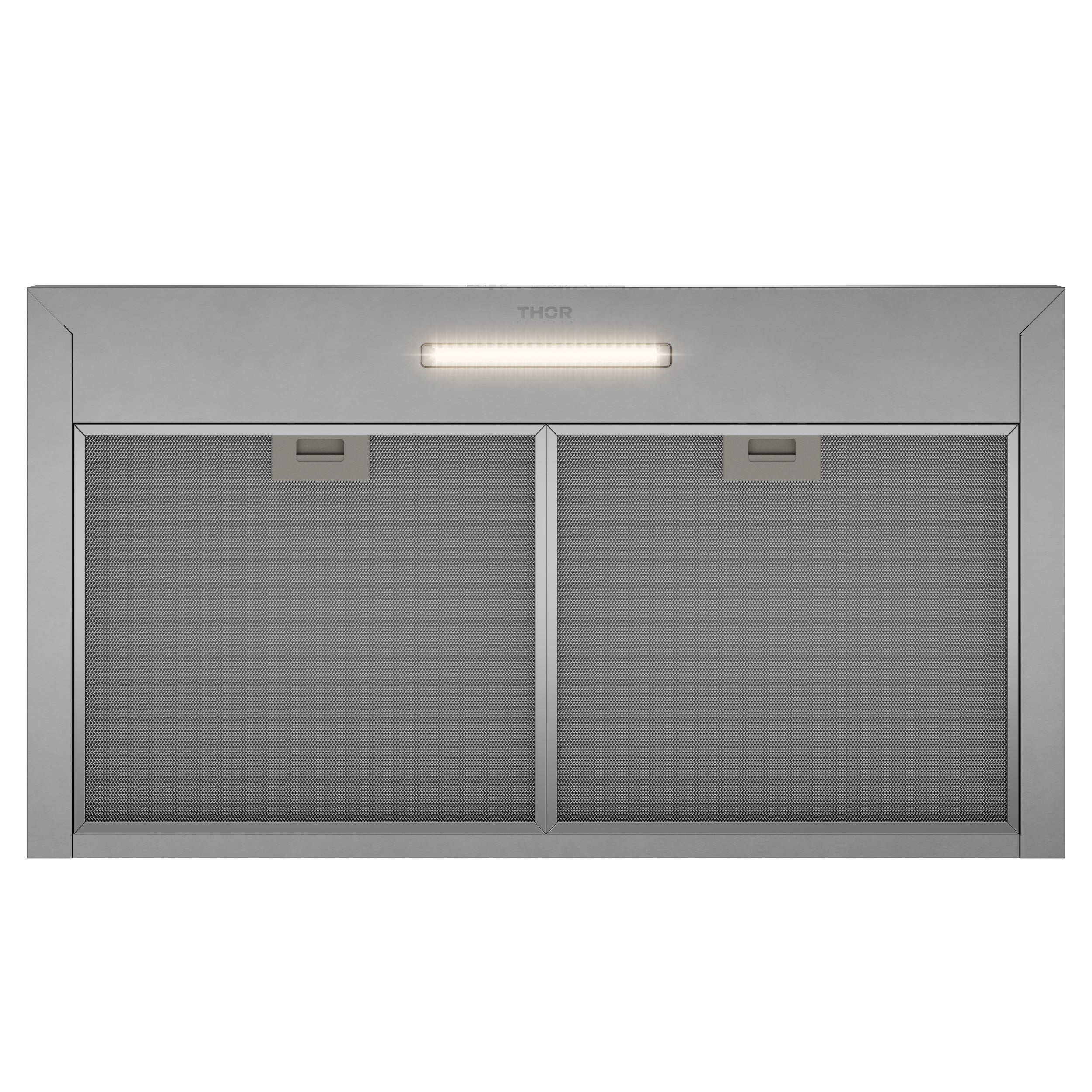

5-LAYER ALUMINUM MESH FILTER

The 5-layer aluminum mesh filter, featured in our air purifiers, guarantees superior particle capture. This means you enjoy cleaner air and an extended filter life thanks to its durable aluminum construction
SPEED TOUCH CONTROL

Includes an easy to operate 3 speed touch control
STAINLESS STEEL FINISH

Stainless steel finish offers modern design aesthetic and is built to withstand high heat, grease, oil and steam
