Technical Details Lighting 2 Level 7W LED Strip Noise Level (Max) 65 dB Power 120V Frequency 60Hz Amperage 3A Filter Type Aluminum Mesh Blower Type Internal Control Type 3 Speed Touch Control Accessories (not included) Charcoal Filter (FT0136) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AT) Color/Finish Stainless Steel

Dimensions Product Size (Inch) (W*D*H) 36″ – 19 3/4″ – 2 3/4″ Ducted Hood Height (Inch) 22 13/16″ – 40 15/16″ Weight Net Weight 26 lbs. Gross weight 47 lbs.

CUTOUT Cutout Width 36 Inch Cutout Depth 19 3/4 Inch Cutout Height 40 15/16 Inch

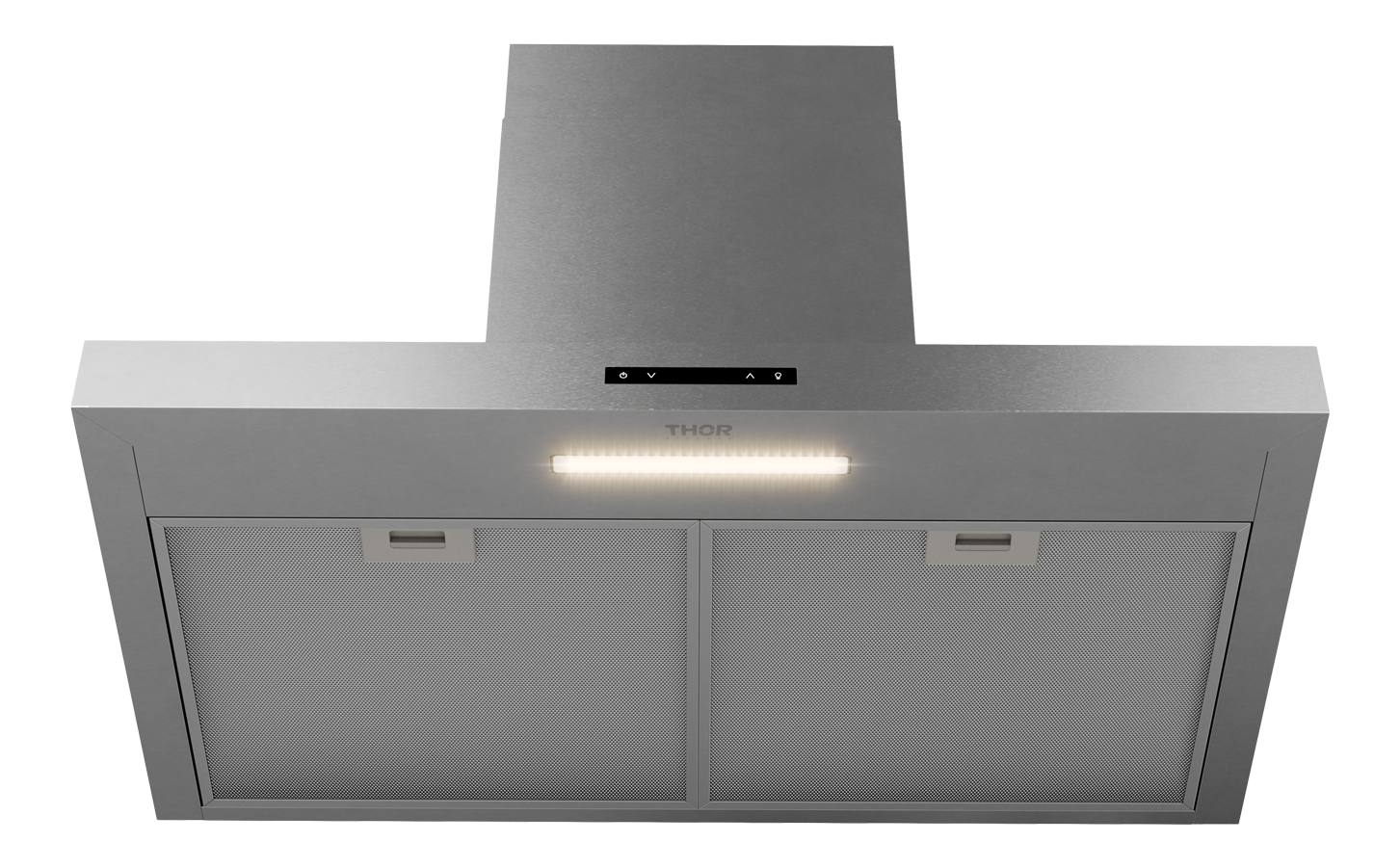

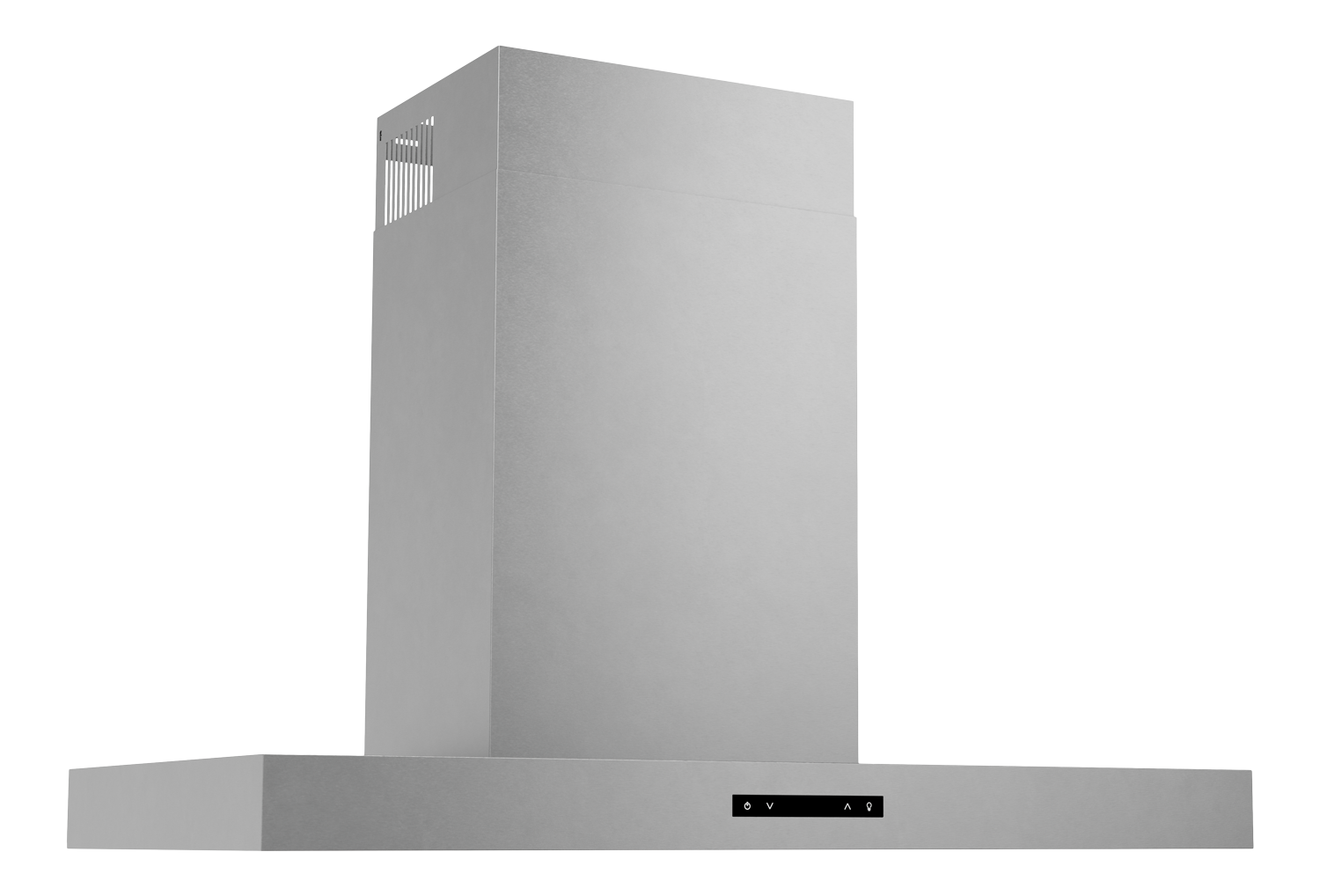

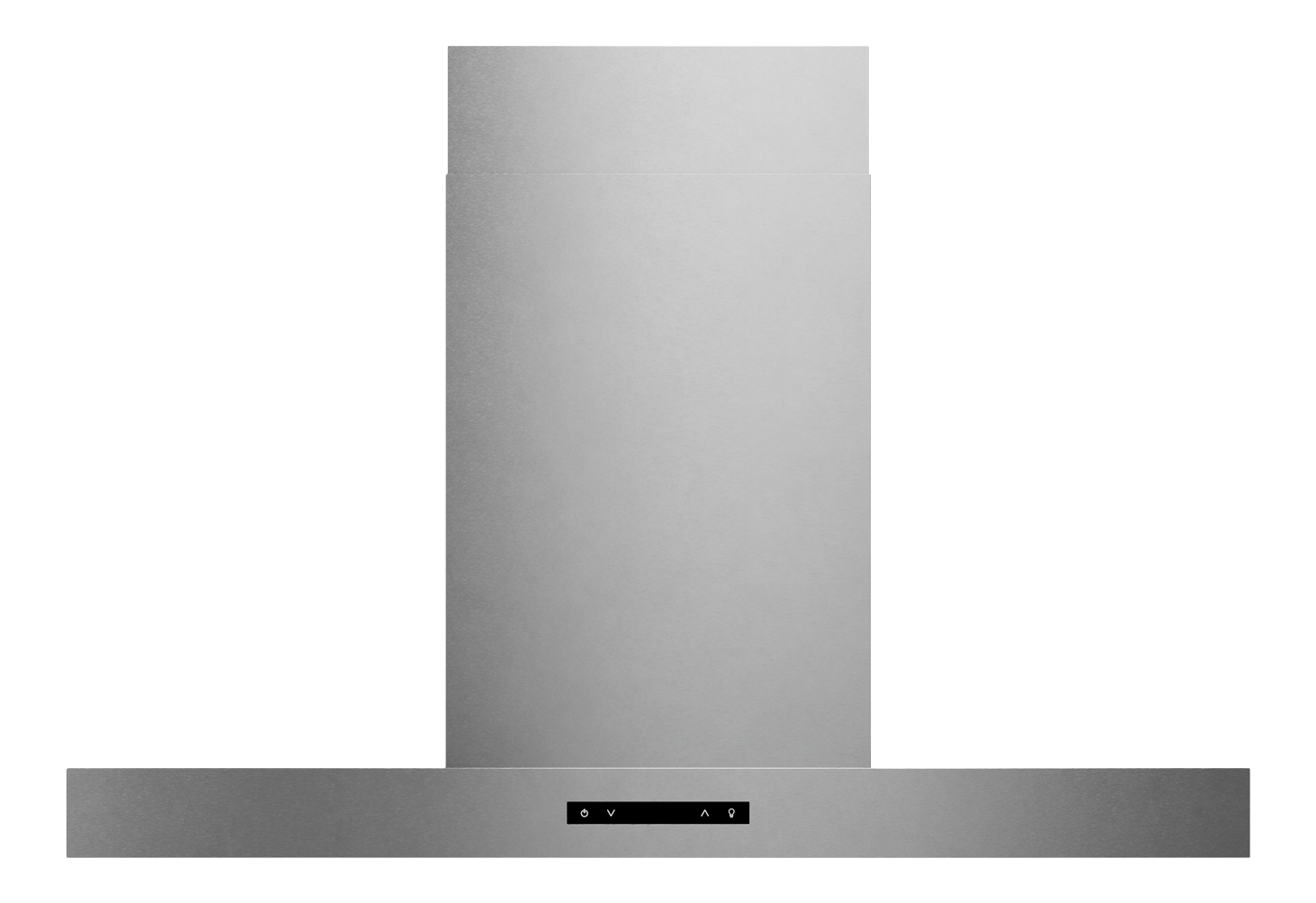

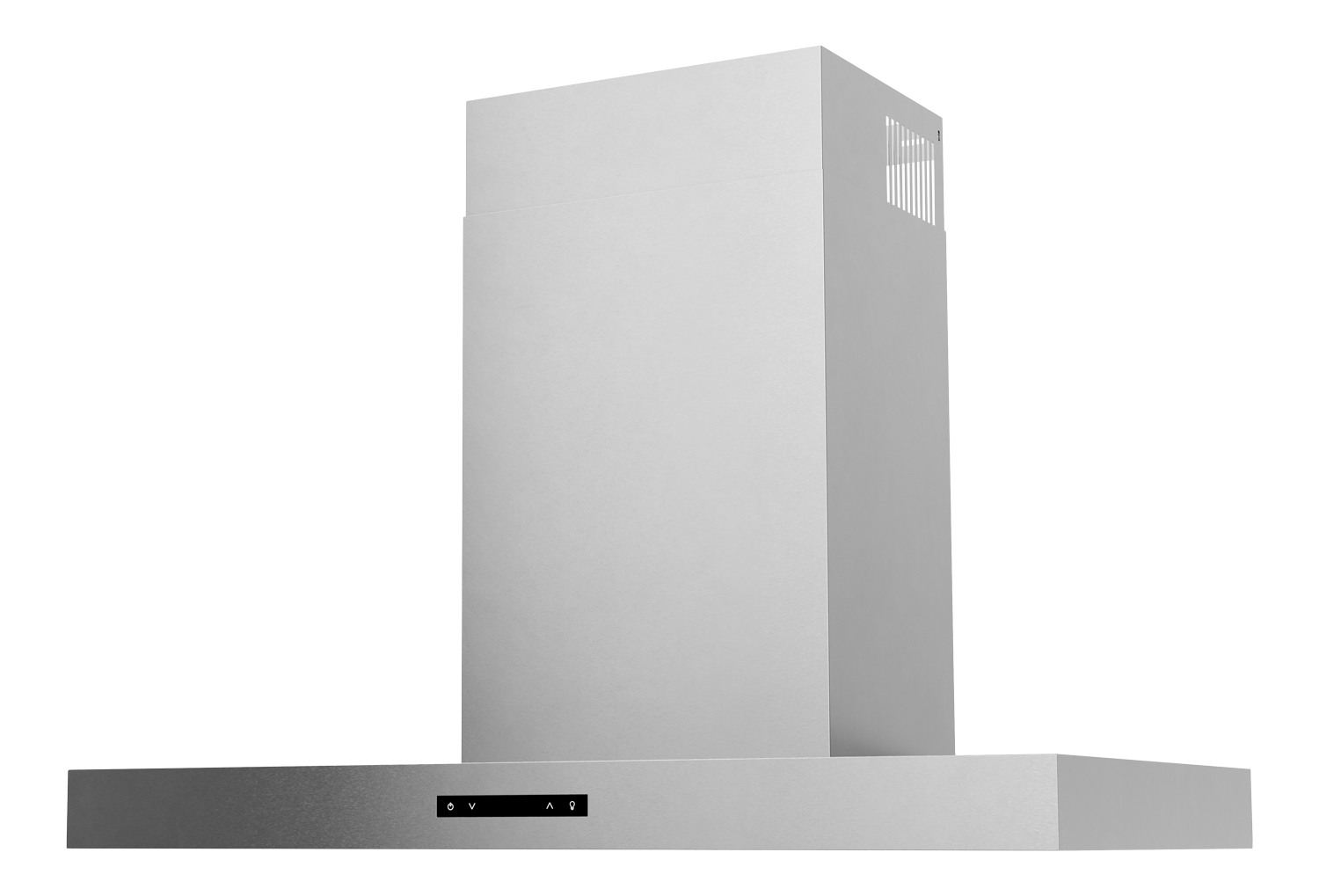

36 Inch Contemporary Wall Mount T-Shape Range Hood – Model ARH36T

ARH36T

36 Inch Contemporary Wall Mount T-Shape Range Hood – Model ARH36T

Name: 36 Inch Contemporary Wall Mount T-Shape Range Hood – Model ARH36T
Brand: thorkitchen.com
SKU: ARH36T
Price: 989.10 USD
Availability: InStock

THOR Kitchen offers the power and performance of a premium pro-style appliance at a practical price. The 36 Inch T-Shape Professional Range Hood in Stainless Steel is a compact powerhouse that adds a sleek, modern look to your kitchen and is designed to eliminate odors, smoke and steam quietly and efficiently. Fish on the plate? Good. The lingering aroma of fish in every room? Not so good. #cooklikeagod

$ 989.10

$ 1,429.00

$ 989.10

$ 1,429.00

All-in-One Kitchen Solution

Whether you're grilling, stir-frying, or chopping, the Griddle, Wok Ring and Bamboo Cutting Board for Gas Rangetop is the perfect combo. Hurry, only at thorkitchen.com

Technical Details
Lighting	2 Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0136) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AT)
Color/Finish	Stainless Steel

Dimensions
*Product Size (Inch) (WDH)*	36″ – 19 3/4″ – 2 3/4″
Ducted Hood Height (Inch)	22 13/16″ – 40 15/16″

Weight
Net Weight	26 lbs.
Gross weight	47 lbs.

CUTOUT
Cutout Width	36 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	40 15/16 Inch

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual

Technical

Technical Details
Lighting	2 Level 7W LED Strip
Noise Level (Max)	65 dB
Power	120V
Frequency	60Hz
Amperage	3A
Filter Type	Aluminum Mesh
Blower Type	Internal
Control Type	3 Speed Touch Control
Accessories (not included)	Charcoal Filter (FT0136) Recirculating Kit (ARC3601P) 10-12ft Duct Extension (RHDC01AT)
Color/Finish	Stainless Steel

Dimension and Weight

Dimensions
*Product Size (Inch) (WDH)*	36″ – 19 3/4″ – 2 3/4″
Ducted Hood Height (Inch)	22 13/16″ – 40 15/16″

Weight
Net Weight	26 lbs.
Gross weight	47 lbs.

Cutout

CUTOUT
Cutout Width	36 Inch
Cutout Depth	19 3/4 Inch
Cutout Height	40 15/16 Inch

Spec and Manual

Specification and Manual

📄 Specification Sheet
📄 Use and Care Manual

PRODUCT FEATURES

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency.

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included).

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM.

HEAT SENSOR

With the integrated heat sensor, your appliances operate with an added layer of safety. It can detect abnormal temperature spikes, protecting your home from potential fire hazards while optimizing energy efficiency.
REPLACEMENT INDICATOR

A 5-layer aluminum mesh filter with reminders for both clean filter maintenance and charcoal filter replacement (charcoal filter not included).
3 SPEED FUNCTION

3 fan speeds allow for easy adjustment between low 232, medium 330, or high 550 CFM.
LED LIGHTING

Dual level LED light strip illuminates your cooking area.
CONVERTIBLE

Vent out with additional charcoal filters (FT0136) and recirculation kit (ARC3601T) (not included).

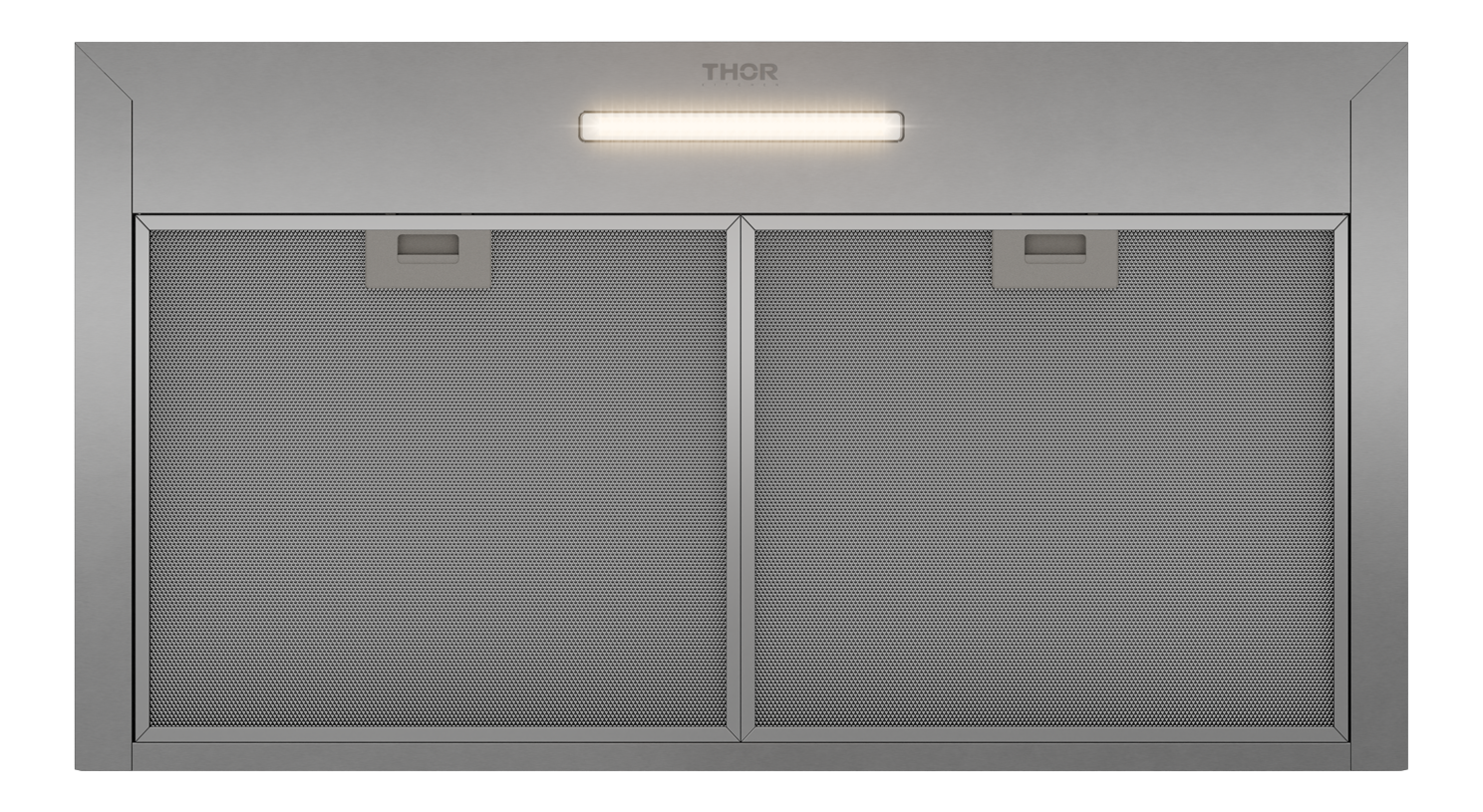

5-LAYER ALUMINUM MESH FILTER

The 5-layer aluminum mesh filter, featured in our air purifiers, guarantees superior particle capture. This means you enjoy cleaner air and an extended filter life thanks to its durable aluminum construction.
SPEED TOUCH CONTROL

Includes an easy to operate 3 speed touch control.
STAINLESS STEEL FINISH

Stainless steel finish offers modern design aesthetic and is built to withstand high heat, grease, oil and steam
